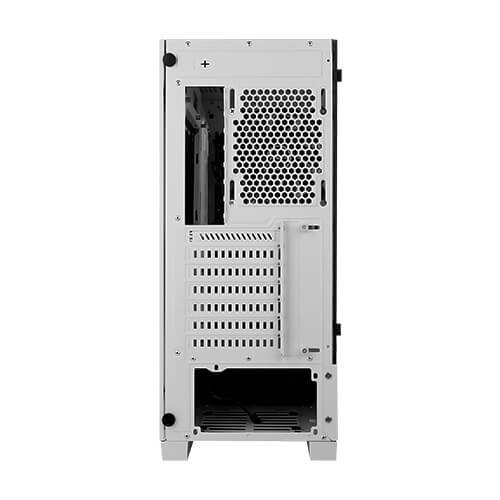

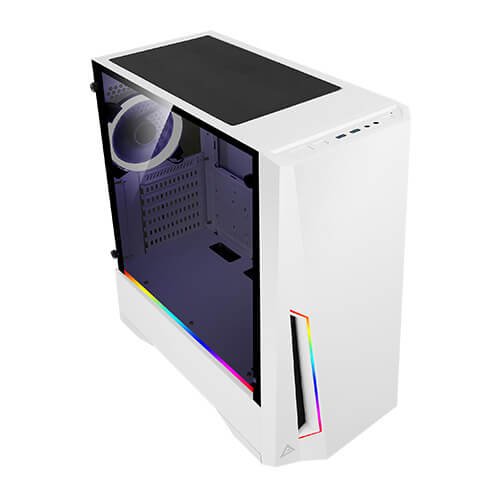

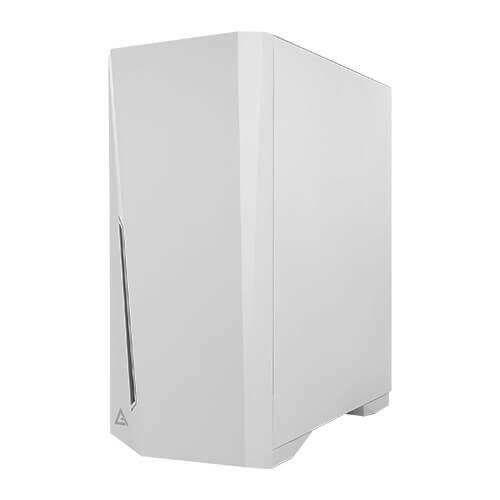

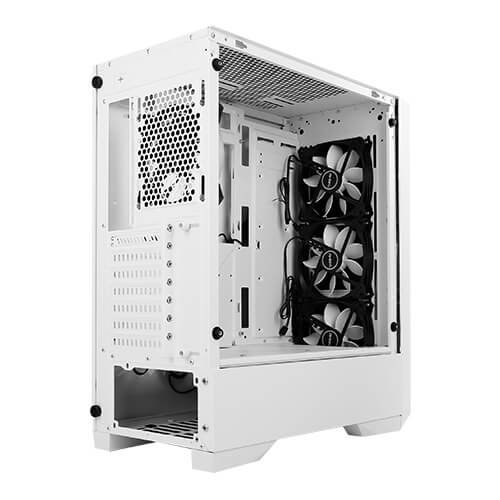

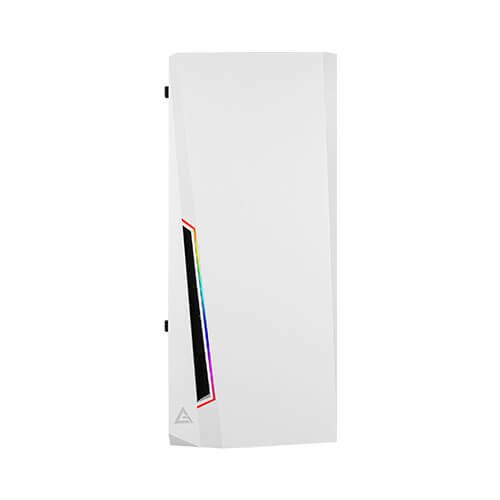

Antec DP501 Mid Tower Gaming Cabinet (White)
Mid Tower Case Type
ATX, Micro-ATX, ITX Motherboard Support
Up to 140 mm CPU Cooler Support
Max GPU Length 360mm
7 Expansion Slots
Case Type – Mid Tower
Motherboard Compatibility – ATX, Micro-ATX, Mini-ITX
CPU Cooler Clearance – Up to 160 mm
GPU Clearance – Up to 360 mm
PSU Support – Up to 160 mm
Side Panel Material – Tempered Glass
TECHNICAL SPECIFICATIONS
General Information–
Case Type– Mid Tower
Series– NX Series
Motherboard Support– ATX, micro-ATX, ITX
Front Access & Controls– Power, LED Control Button, USB 3.0 x 1, USB 2.0 x 2, HD-AUDIO
Expansion Slots– 7
Side Panel– Tempered Glass Side Panel
Drive Bays–
5.25″– 0
3.5″/2.5″– 2
2.5″– 4
Fan Support & Included–
Front Access & Controls– 3 x 120mm or 2 x 140mm
Top– 2 x 120mm or 2 x 140mm
Rear– 1 x 120mm
Included Fan– 3 x 120mm in front & 1 x 120mm White LED fan in Rear
Radiator Support–
Front– ≤ 360mm
Top– ≤ 280mm
Rear– ≤ 120mm
GPU & PSU Support–
Max GPU Length– ≤ 360mm
Max CPU Height– ≤ 160mm
Max PSU Length– ≤ 160mm
MB Tray Clearance– ≤ 20mm
Miscellaneous–
Dust Filters– Top / Bottom
Dimensions– 443mm x 210mm x 484mm(DxWxH)
Net Weight– 5.57 kgs
Gross Weight– 6.4 kgs
Specification: Antec DP501 Mid Tower Gaming Cabinet (White)
Brand–
Antec
EAN, GTIN, UPC–
761345800198
WARRANTY–
2 Years Warranty
Product Type–
PC Cabinets
COLOR–
WHITE
FORM FACTOR–
MID TOWER
MATERIAL–
SGCC+PLASTIC
SIDE PANEL–
TEMPERED GLASS
MOTHERBOARD COMPATIBILITY–
ATX,MICRO-ATX,ITX
LIGHTING–
RGB
FANS–
4
RADIATOR COMPATIBILITY–
YES
IDEAL FOR GAMING–
YES
