ASRock B450M-HDV R4.0 Gaming Motherboard

CPU – Supports AMD AM4 Socket

Chipset – AMD Promontory B450

Form Factor – Micro ATX Form Factor

I/O Panel – HDMI, DVI, D-Sub

Storage – 4 x SATA3 6.0 Gb/s Connectors, 1 x Ultra M.2 Socket

Recommended reading:MERCURY ME945XA MOTHERBOARD

OVERVIEW
This B450M-HDV R4.0 gaming motherboard utilizes the next-generation Hybrid Digi Power design to bring precise control and smooth power. As well as ensuring efficient and clean power delivery to the CPU, the stability and lifespan of the motherboard are also greatly increased.

The motherboard comes with AMD StoreMI technology, a powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. AMD StoreMI technology “combines” those two types of storage into a single drive and automatically moves the data you access most frequently to the SSD, so you can get the best of both worlds.

The PCIe Gen3 x4 Ultra M.2 interface accelerates data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 kit to install some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. ASRock put solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stable and ensure a longer lifetime.

TECHNICAL SPECIFICATIONS

Model_B450M-HDV R4.0
CPU_ – Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors
– 6 Power Phase design
– Supports CPU up to 105W
Chipset_ – AMD Promontory B450
Form Factor_ – Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
– Solid Capacitor design
Memory_ – Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– Max. the capacity of system memory: 64GB*
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots*For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to the below table for AMD non-XMP memory frequency support.
BIOS_ – 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake-up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment
Graphics_ – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, DVI-D, and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with DVI-D and HDMI Ports
– Supports 4K Ultra HD (UHD) playback with HDMI Port*Actual support may vary by CPU
**The Max shared memory of 16GB requires 32GB system memory installed.
Audio_ – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection
LAN_ – PCI-E x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots_ AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge, and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*- 1 x PCI Express 2.0 x1 Slot
*Supports NVMe SSD as boot disks
Storage_ – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, and RAID 10), NCQ, AHCI, and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge, and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector_ – 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

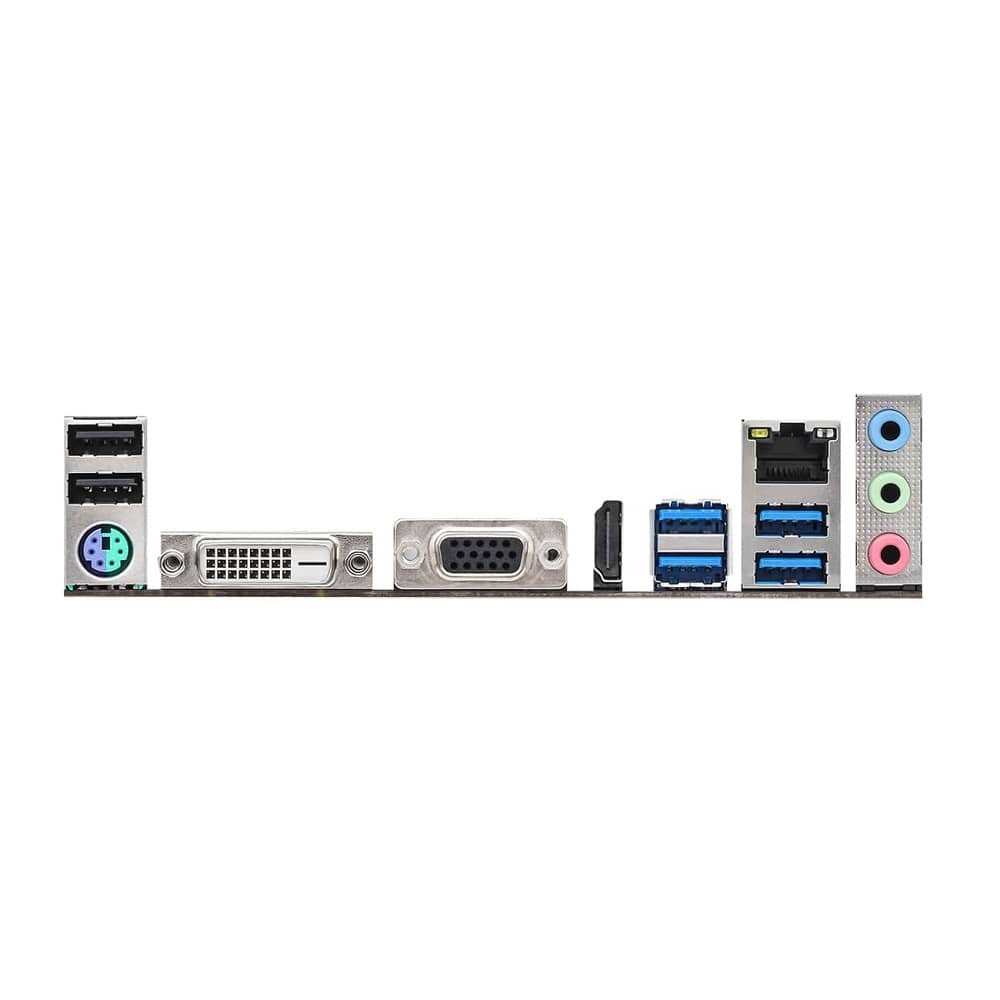

Rear Panel I/O_ – 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub port
– 1 x DVI-D port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI_Software
– ASRock A-Tuning
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD_ – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser, and Toolbar
Accessories_ – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Hardware Monitor_ – CPU/Chassis temperature sensing
– CPU/Chassis Fan Tachometer
– CPU/Chassis Quiet Fan
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore
OS_ – Microsoft Windows 10 64-bit / 11 64-bit*
*Summit Ridge does not officially support Windows 11.
Certifications_ – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Unique Feature_ ASRock Super Alloy
– High-Density Glass Fabric PCB
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Product Dimension_ 30.48 x 6.35 x 24.38 cm
Weight_ 730 gm (approx)
Specification: ASRock B450M-HDV R4.0 Gaming Motherboard
