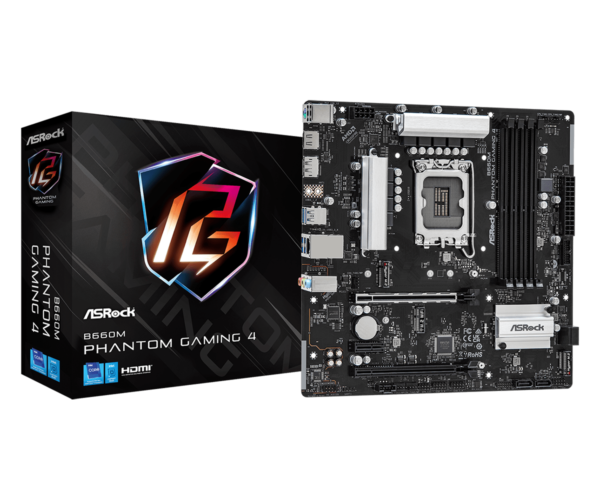

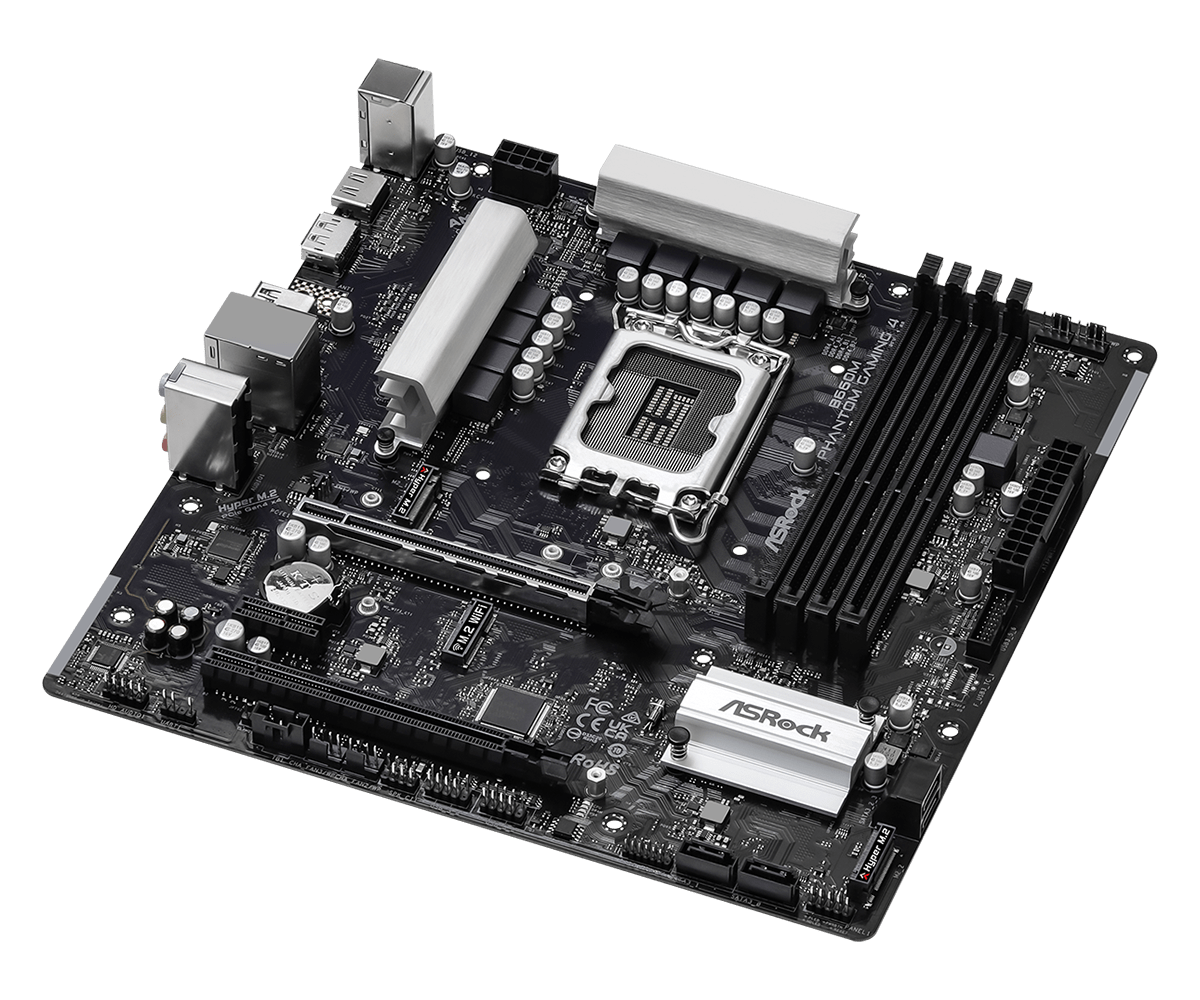

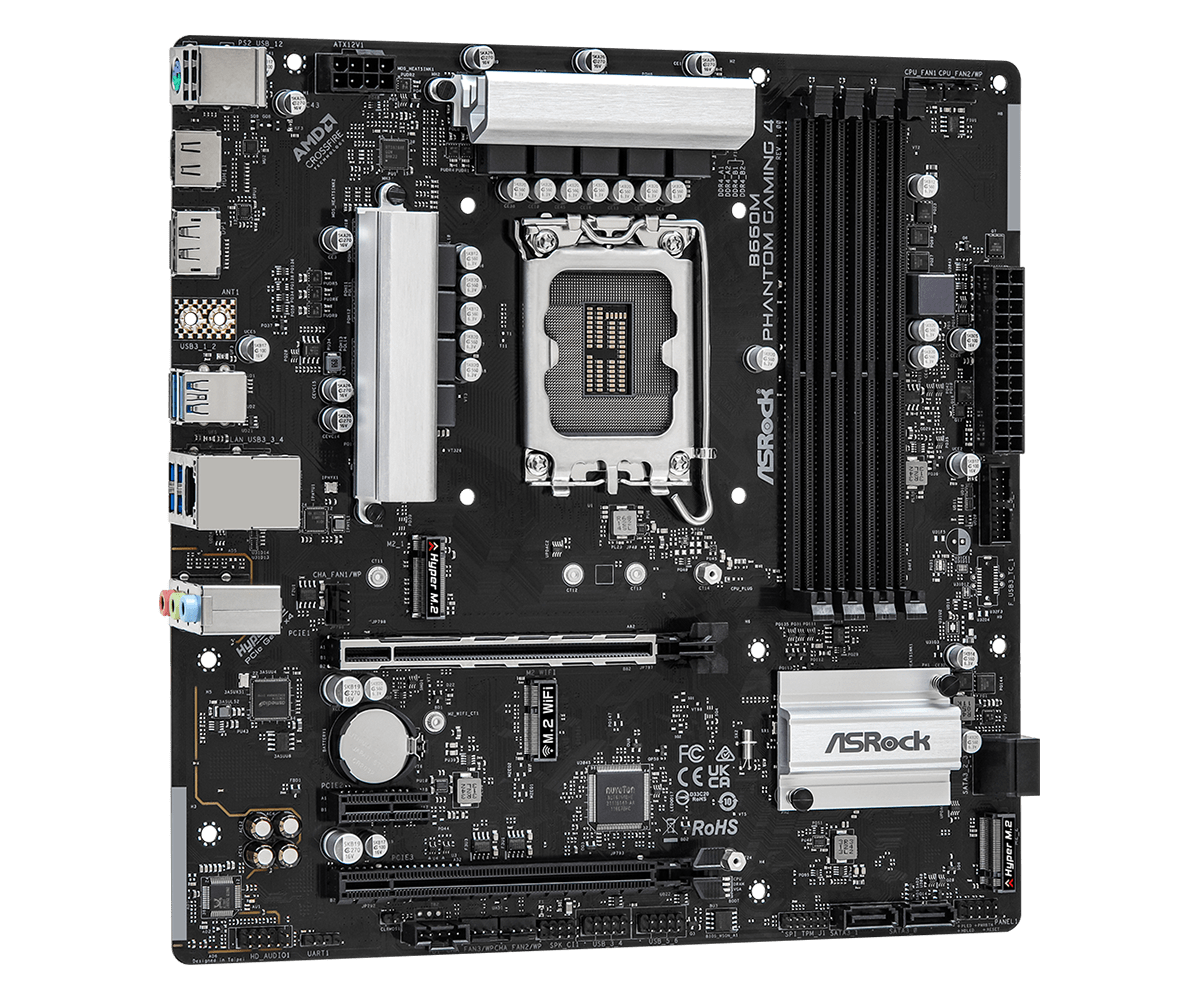

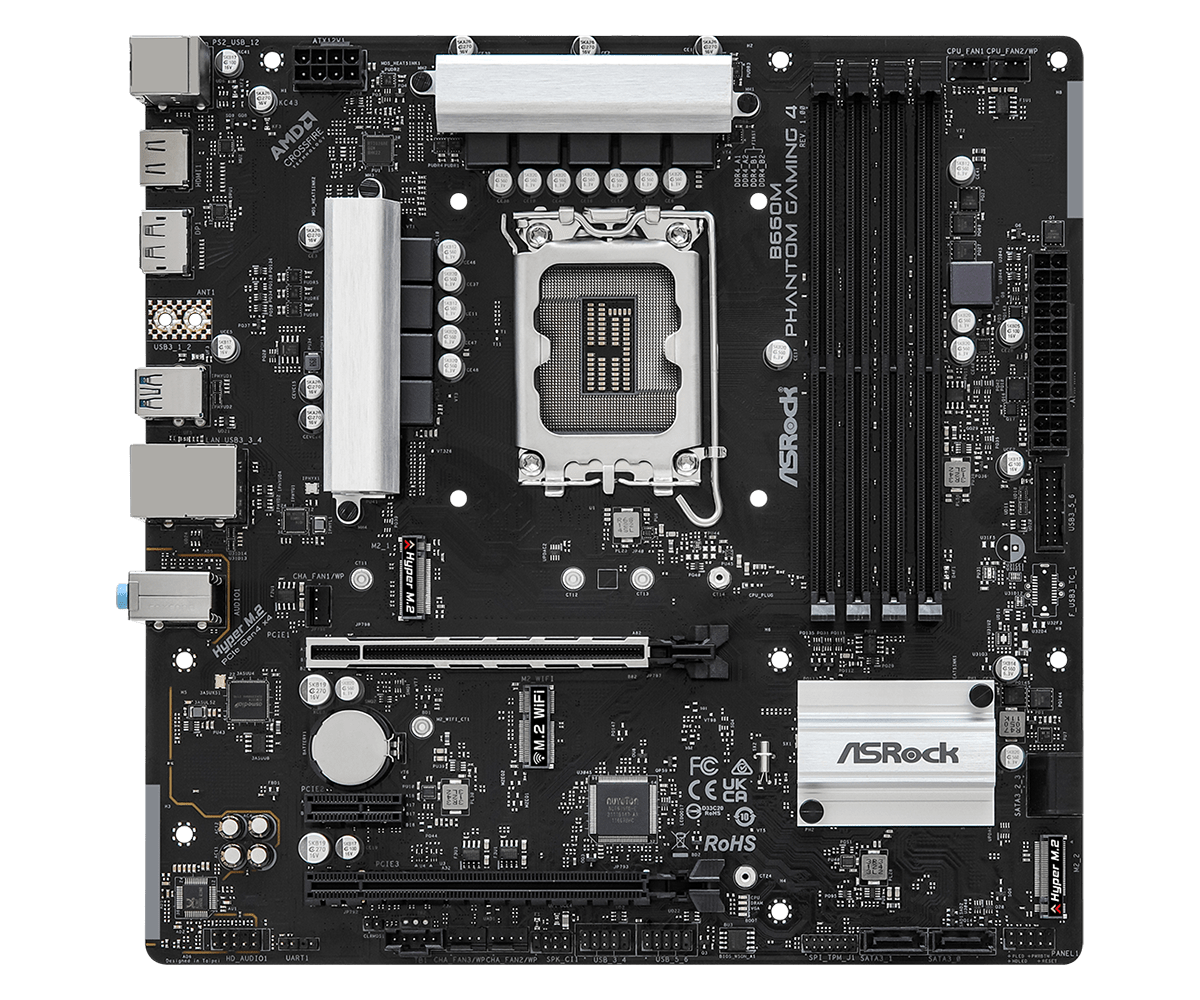

ASRock B660M PHANTOM GAMING 4 LGA 1700 DDR4 Micro ATX Intel Motherboard

Supports 12th Gen Intel Core Processors (LGA1700)
8 Phase Power Design
Supports DDR4 5333MHz (OC)*
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
2 Hyper M.2 (PCIe Gen4 x4)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)
Specification :

Model
Brand ASRock
Model B660M PHANTOM GAMING 4
Supported CPU
CPU Socket Type LGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Chipsets
Chipset Intel B660
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 5333+(OC)*
* Supports DDR4 3200 natively.
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16
* Supports NVMe SSD as boot disks.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
* Supports NVMe SSD as boot disks.
PCI Express x1 1 x PCI Express 3.0 x1
Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports Intel Optane Technology (M2_2 only).
* Supports Intel Volume Management Device (VMD).
* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps

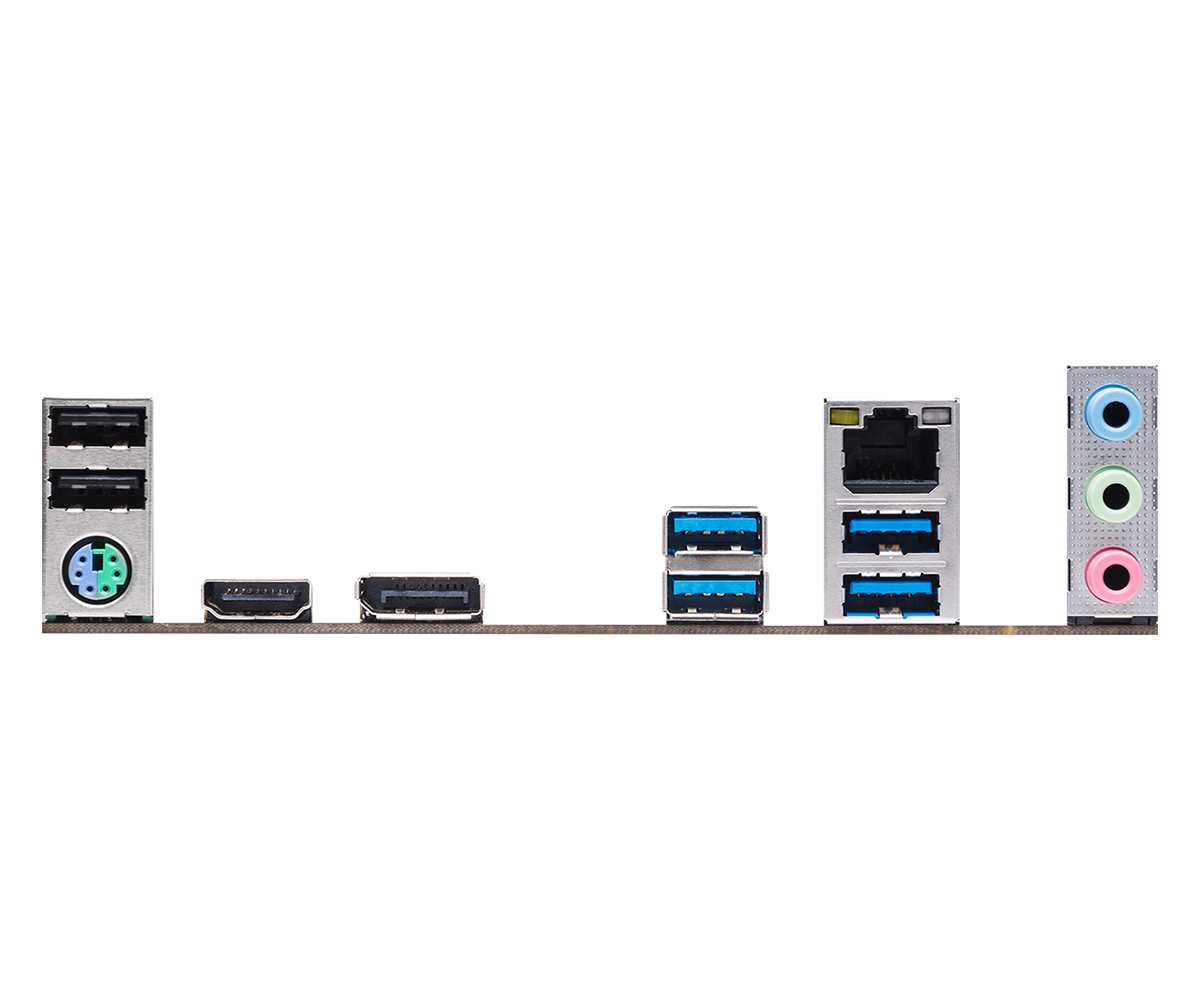

Rear Panel Ports
Back I/O Ports 3 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*** CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6″ x 9.6″
Power Pin 1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Windows Compatibility
Windows 11 Supported
