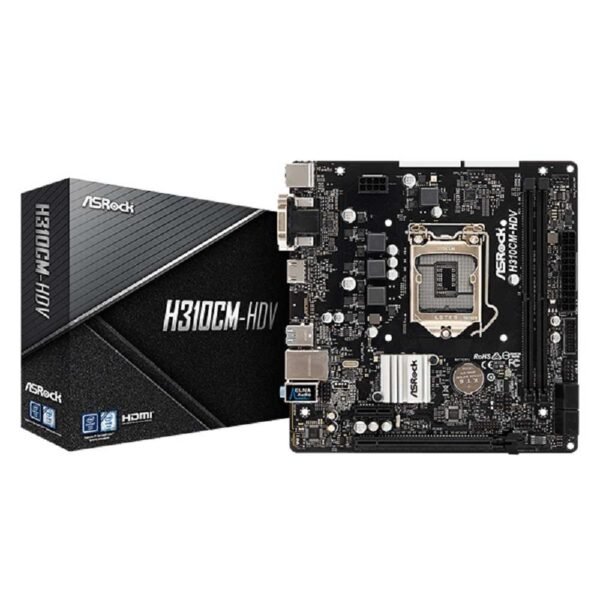

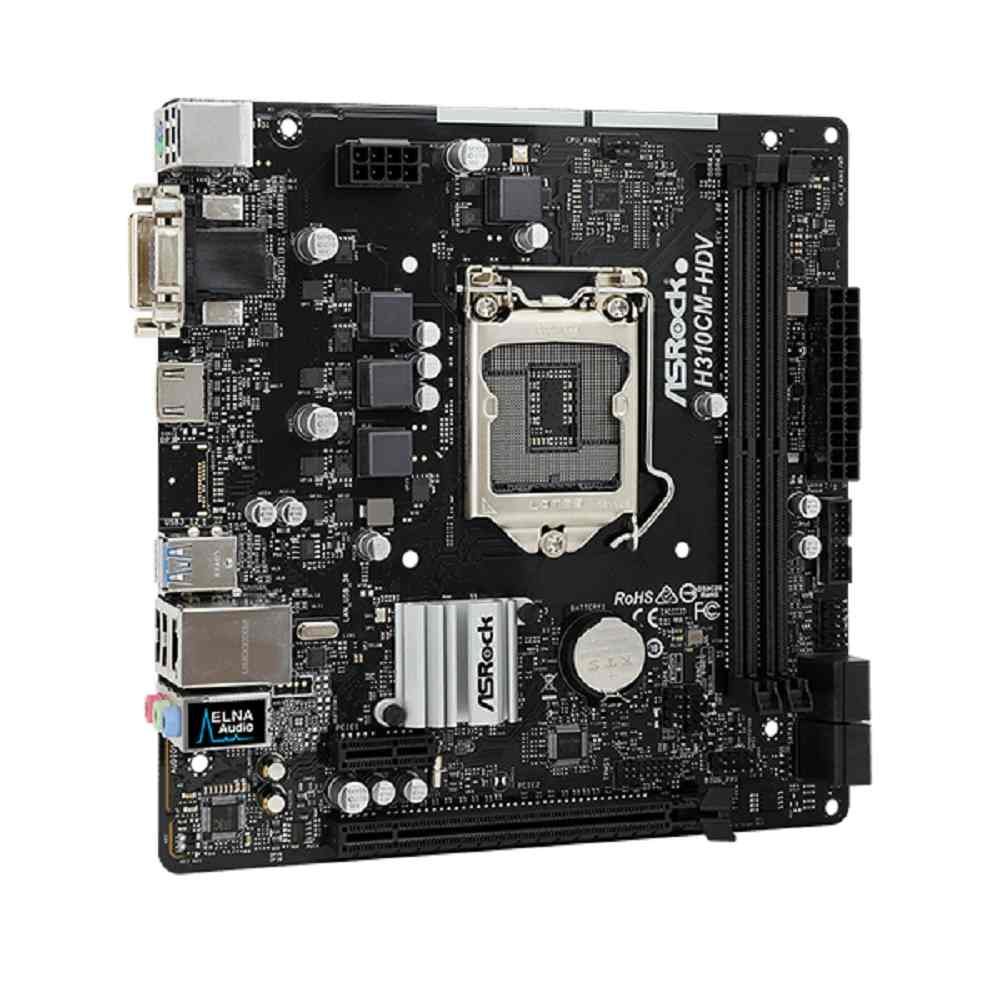

ASRock H310CM-HDV | Micro ATX Motherboard
Motherboard Socket 1151
Intel H310 Chipset Support
Max Memory Capacity 32GB
Micro ATX Form Factor
7.1 CH HD Audio
Model – H310CM-HDV
Memory – DDR4
Chipset – Intel H310
CPU – 9th and 8th Gen Intel Core Processors
Graphics Output Options – D-Sub, DVI-D, and HDMI
OVERVIEW
ASRock H310CM-HDV Micro ATX Motherboard is a motherboard that is built to suit any need. The board is built with an Intel H310 chipset and supports Intel LGA 1151, which means that the board can support processors with a TDP. The board has four DDR4 DIMM slots and two PCI-E slots. The board also has two USB 3.1 Gen1 ports, one VGA port, and one HDMI port. The board also has one Gigabit LAN port and supports the 7.1-channel HD audio standard.
ASRock H310CM-HDV Micro ATX Motherboard This motherboard is perfect for any DIY PC builder looking to get a quality motherboard without spending a fortune. It is an excellent option for Intel processors and has plenty of options for expansion. It is built with the basics in mind, but also has a number of other features that can be useful. It includes six SATA3 ports, two USB 3.1 ports, and two USB 2.0 ports. It also has built-in audio, as well as integrated graphics.
TECHNICAL SPECIFICATIONS
Model H310CM-HDV
– Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
– Supports CPU up to 95W
– 4 Power Phase design
– Supports Intel Turbo Boost 2.0 Technology
Chipset – Intel H310
Form Factor – Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
– Solid Capacitor design
Memory – Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Max. the capacity of system memory: 32GB*
– Supports Intel Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– DRAM, PCH 1.05V Voltage Multi-adjustment
Graphics – Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
– DirectX 12
– HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
– Three graphics output options: D-Sub, DVI-D, and HDMI**
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**Supports up to 2 displays simultaneously
Audio – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection
LAN – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– 1 x Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks
Storage – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector – 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if a 3-pin or 4-pin fan is in use.

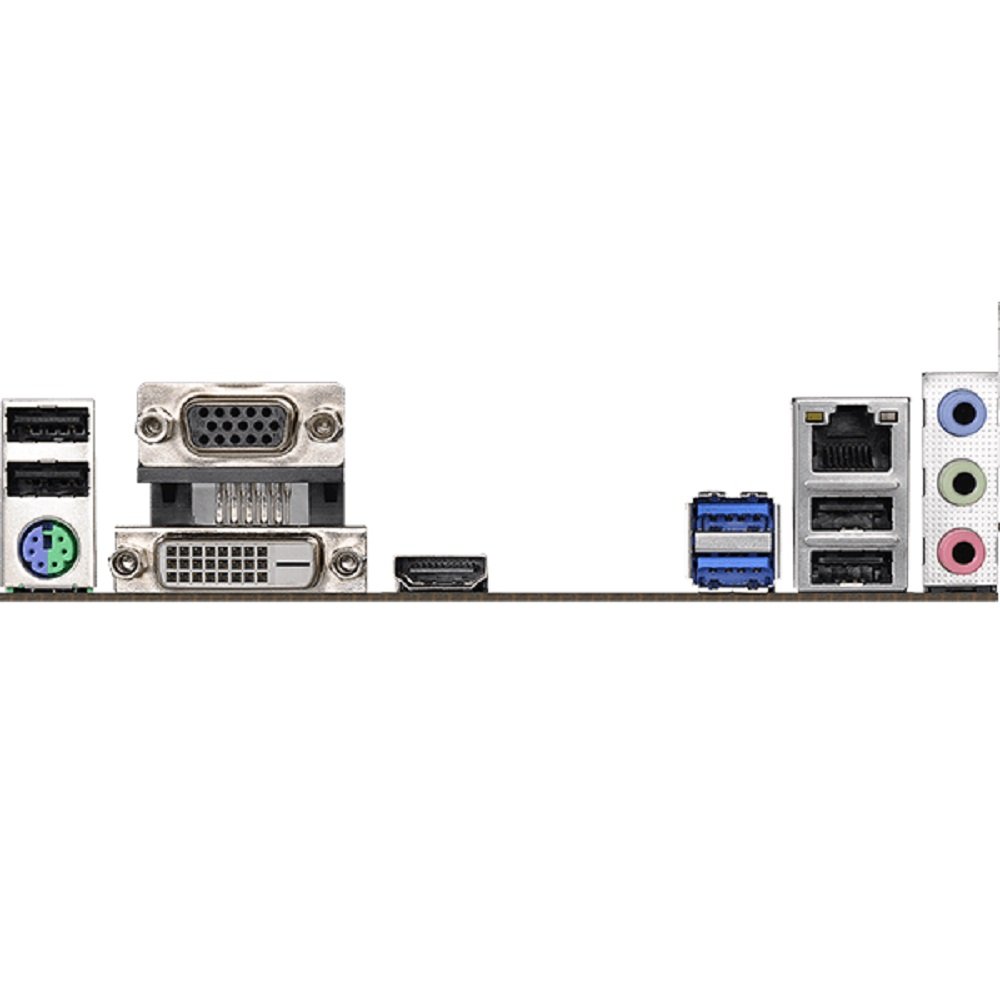

Rear Panel I/O – 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub port
– 1 x DVI-D port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser, and Toolbar
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
Hardware Monitor – Temperature Sensing: CPU, Chassis/Water Pump Fans
– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS – Microsoft Windows 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ERP/EuP ready (ErP/EuP ready power supply is required)
Unique Feature ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Product Dimension (Approximate) 27.43 x 21.08 x 5.84 cm
Weight (Approximate) 660 gm
Specification: ASRock H310CM-HDV | Micro ATX Motherboard
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1151
Brand
Asrock
CHIPSET
Intel H310
MAXIMUM MEMORY
32 GB
FORM FACTOR
MICRO ATX
IDEAL FOR GAMING
NO
WARRANTY
3 Years Warranty
