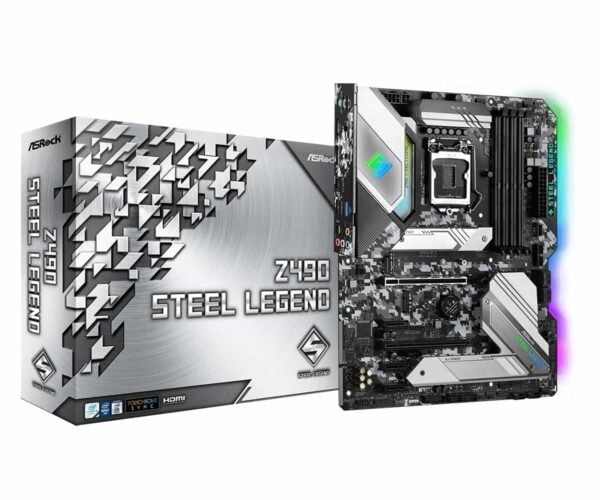

ASRock Z490 Steel Legend Gaming Motherboard
Brand
Asrock
FORM FACTOR
ATX
WARRANTY
3 Years Warranty
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1200
MEMORY TYPE
DDR4
CHIPSET
Intel Z490
MAXIMUM MEMORY
128 GB
IDEAL FOR GAMING
YES
ASRock Z490 Steel Legend LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Gaming Motherboard
FEATURES :
Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
11 Phase Dr.MOS Power Design
Supports DDR4 4266MHz+ (OC)
2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
AMD CrossFireX
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
2 USB 3.2 Gen2 (Rear Type-A+C),
7 USB 3.2 Gen1 (4 Front, 2 Rear, 1 Front Type-C)
Dragon 2.5 Gigabit LAN
ASRock Polychrome SYNC
TECHNICAL SPECIFICATIONS :
Unique Feature :
ASRock USB 3.2 Gen2
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
XXL Aluminum Alloy Heatsink
Premium 60A Power Choke
50A Dr.MOS
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
I/O Armor
Shaped PCB Design
Matte Black PCB
High Density Glass Fabric PCB
2oz Copper PCB 2.5G LAN
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU :
Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
Digi Power Design
11 Power Phase Design
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel K-Series unlocked CPUs
Supports ASRock BCLK Full-range Overclocking
Supports ASRock Hyper BCLK Engine III
Chipset :
Intel Z490
Memory :
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
Supports DDR4 4266+(OC)* / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory : 128GB**
Supports Intel Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
*Please refer to Memory Support List on ASRock’s website for more information.Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS :
128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
Graphics :
Hardware Accelerated Codecs : AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute : Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security : Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports
*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows OS.
Audio :
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
110dB SNR DAC with Differential Amplifier
PCB Isolate Shielding
Individual PCB Layers for R/L Audio Channel
Gold Audio Jacks
Nahimic Audio
LAN :
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots :
2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3 : single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)*
3 x PCI Express 3.0 x1 Slots
Supports AMD Quad CrossFireX and CrossFireX
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
*Supports NVMe SSD as boot disks
Storage :
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
***If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.If M2_3 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
**Supports Intel Optane TechnologySupports NVMe SSD as boot disksSupports ASRock U.2 Kit
Connector :
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel Z490) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Intel Z490) (Supports ESD Protection)
*Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O :
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port- 1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Intel Z490) (Supports ESD Protection)*
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks : Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*Ultra USB Power is supported on USB3_12 ports.ACPI wake-up function is not supported on USB3_12 ports.
Software and UEFI :
Software :
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*
UEFI :
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Internet Flash
ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD :
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories :
Quick Installation Guide, Support CD
2 x SATA Data Cables
4 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
Hardware Monitor :
Temperature Sensing : CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Tachometer : CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature) : CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control : CPU, CPU/Water Pump, Chassis/Water Pump Fans
Voltage monitoring : +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.05V, VCCSA, VCCST, VCCIO
Form Factor :
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
2oz Copper PCB
OS :
Microsoft Windows 10 64-bit
Certifications :
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty :
3 Years
