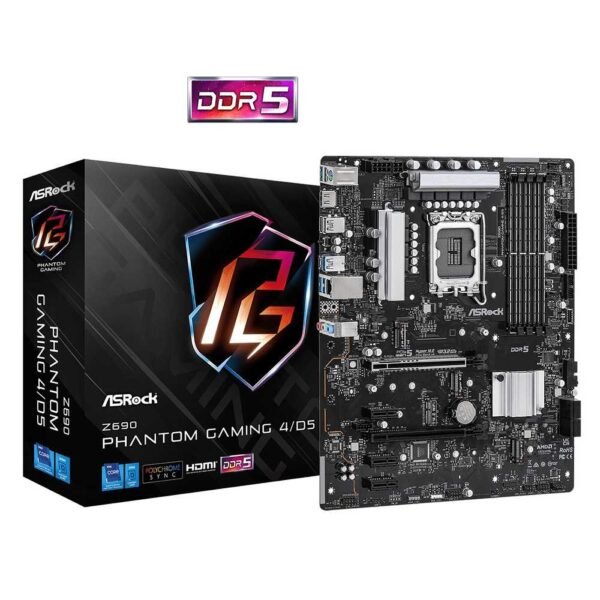

ASRock Z690 Phantom Gaming 4/D5 | ATX Motherboard | Support LGA 1700 Socket
LGA 1700 CPU Socket
Intel Z690 Chipset
ATX Form Factor
Max 128GB DDR5 Memory Support
AMD Crossfire Technology Support
Motherboard Chipset – Intel Z690 Chipset
CPU Socket – LGA 1700
Max Memory Support – 128GB
Motherboard Form Factor – ATX
OVERVIEW
ASRock Z690 Phantom Gaming 4/D5 ATX Motherboard is designed by gamers and for gamers. Plus its relentless presence has a plethora of gaming-oriented features and excellent gaming capabilities. It is all about bringing a new gaming experience to the gamers. Reinforced DIMM slot exposed and mounted on the motherboard to deliver better physical strength as well as a more stable memory signal, with this innovative revolutionary design, it is able to dramatically overclock DRAM modules to insane frequencies.
ASRock Z690 Phantom Gaming 4/D5 latest PCI Express 5.0 is capable of delivering a breathtaking bandwidth of 128Gbps, ready to unleash the full potential of the high-end graphics cards of the future. Whether you’re using headphones, headsets, external or internal speakers via USB, Wi-Fi, analog output, or even HDMI, Nahimic Audio, will give you the most immersive listening experience, vibrant and full of detail.
The ASRock Z690 Phantom Gaming 4/D5 motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, allowing it to perform twice as fast as the previous third generation. capable of delivering a lightning-fast data transferring experience.
This Z690 Phantom Gaming 4/D5 motherboard has an onboard RGB header and an addressable RGB header that allows the motherboard to connect compatible LED devices such as strips, CPU fans, coolers, chassis, and so on. Users can also synchronize RGB LED devices to Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
The latest USB 3.2 Gen2x2 Type-C delivers 20Gbps data transfer rates that are 2x faster than the previous generation and provides a blazing-fast data transfer interface with a reversible USB Type-C design that fits any way the connector is connected.
TECHNICAL SPECIFICATIONS
Model Z690 Phantom Gaming 4/D5
Supported CPU
CPU Socket Type LGA 1700 Socket
CPU Type Supports 12th Gen Intel Core Processors
– 9 Power Phase design
Supported CPU Technologies -Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology
Chipset Intel Z690
Memory
Maximum Memory Supported 128 GB
Channel Supported Dual-Channel DDR5 Memory Technology
Number of Memory Slots 4 x DDR5 DIMM Slots
Memory Standard Supports DDR5 non-ECC, un-buffered memory up to 5800+(OC)*
– Supports Intel Extreme Memory Profile (XMP) 3.0
*Supports DDR5 4400 (1DPC) / 3600 (2DPC) natively.
Graphics
Graphics Architecture Intel Xe Graphics Architecture (Gen 12)
Graphics Support – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Expansion Slots
CPU – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
– 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
– Supports AMD CrossFire
*Supports NVMe SSD as boot disks
Storage
CPU – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel Optane Memory H Series (M2_2 and M2_3 only)
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Onboard LAN
LAN Speed – Gigabit LAN 10/100/1000 Mb/s
LAN Support – Giga PHY Intel I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Onboard Audio
Audio Chipset Realtek ALC897 Audio Codec
Audio Channel 7.1 CH HD Audio
Audio Support – Nahimic Audio
– Supports Surge Protection
RAID
RAID Support – Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
Rear Panel Ports
Back I/O Ports – 3 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Other Connectors – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
Software and UEFI
Software – ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI – ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer
Unique Feature
ASRock USB 3.2 Gen2 – ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy – Premium Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High-Density Glass Fabric PCB
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Hardware Monitor – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: CPU Vcore, VCCSA, VDD2, +1.05V PROC, +0.82V PCH, ATX+5VSB, VCCIN AUX, PCH, +12V, +5V, +3.3V
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version)
OS Support – Microsoft Windows 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Form Factor – ATX Form Factor
– Solid Capacitor design
Dimension 12.0 x 9.6 inch / 30.5 x 24.4 cm
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 4 x Screws for M.2 Sockets
Specification: ASRock Z690 Phantom Gaming 4/D5 | ATX Motherboard | Support LGA 1700 Socket
Brand
Asrock
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1700
CHIPSET
Intel Z690
MAXIMUM MEMORY
128 GB
FORM FACTOR
ATX
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
