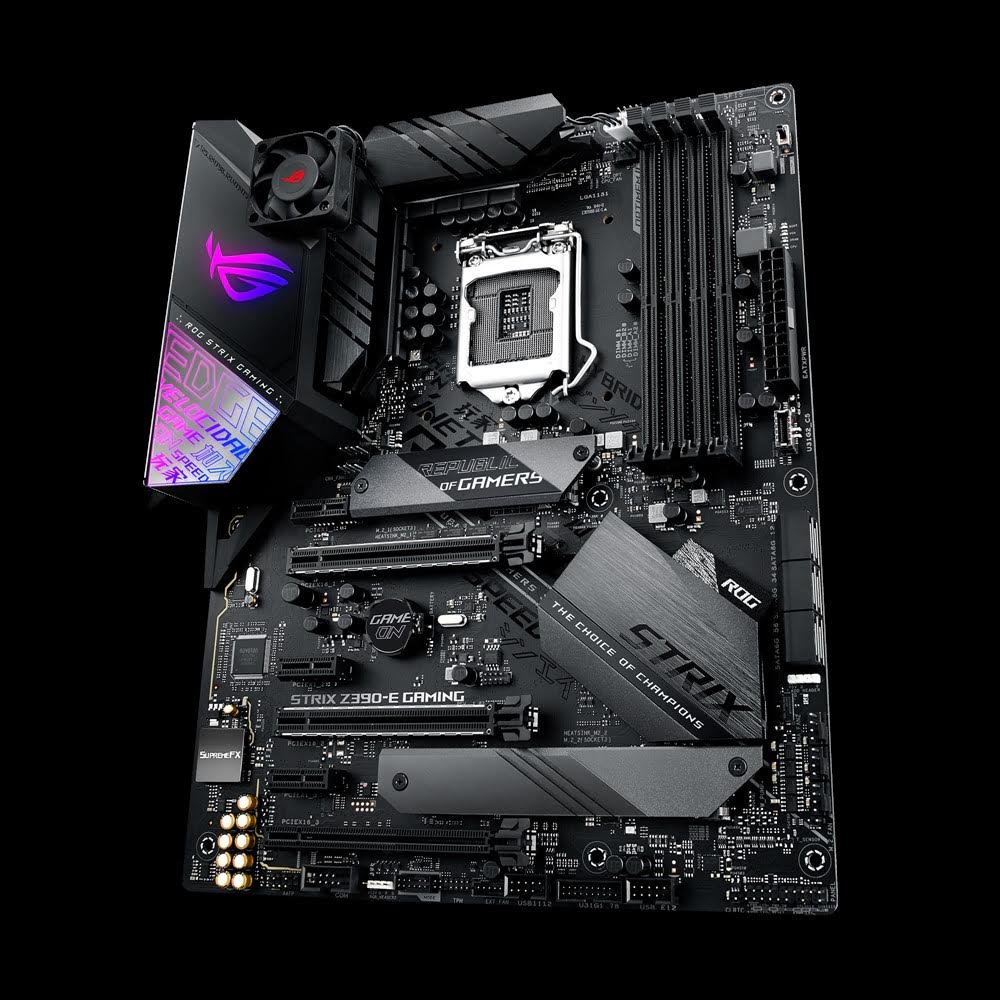

Asus ROG Strix Z390-E Gaming (Wi-Fi) Motherboard

In The Box
Sales Package
1 Mother Board, User Manual, 4 x SATA 6 Gbps Cables, M.2 Screw Package, Supporting DVD, ASUS 2T2R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11a/b/g/n/ac Complaint), Cable Tie Back, SLI HB Bridge (2-Way-M), ROG Strix Stickers, Assistant Fans (40mm), Screw for Assistant Fans, ROG Door Hangers, Extensions Cable for RGB Strips (80cm), Extension Cable for Addressable LED, Thermistor Cable
General
Brand
ASUS
Model ID
Rog Strix Z390-E Gaming
Essentials
Form Factor
ATX
Socket Type
LGA1151
Chipset
Intel Z390
Chipset Manufacturer
Intel
Memory
Memory Configuration
128 GB DDR4 Dual Channel DIMM
ECC Support
Non-ECC
Buffered Memory
No
Storage
SATA 6 Gb/s
6, Intel Z390 Chipset
RAID Controller
Intel Z390
RAID Configurations
0, 1, 5, 10
Graphics
Integrated Graphics card
Intel HD Graphics Support
External Graphics Card Support
Yes
Connectivity
Wireless and Bluetooth
5.0
Internal I/o Headers
SATA 6 Gb/s Headers
6
USB 2.0 Headers
6
USB 3.0 Headers
9
Back Panel Ports
USB 2.0 Ports, Controller
6
USB 3.0 Ports, Controller
9
HDMI Ports
1
Audio I/O Channels
1
Optical S/PDIF Ports and S/PDIF Out ports
1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks
1
General Features
OS Support
Windows 10 64-bit
BIOS
1 x 128 MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, SM BIOS 3.1, ACPI 6.1
Warranty
Warranty Summary
3 Years Limited Local Warranty
Covered in Warranty
Product Warranty Limited to Manufacturing Defects Only
Not Covered in Warranty
Physical Damage
Warranty Service Type
Carry-in
