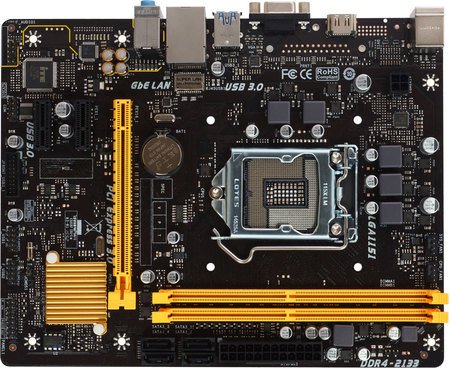

BIOSTAR MOTHERBOARD H110MH PRO D4 Ver. 6.x

BIOSTAR MOTHERBOARD H110MH PRO D4 Ver. 6.x

TECHNICAL DETAILS :

Chipset
Intel H110

CPU SUPPORT
Intel Core i7 LGA 1151 Processor
Intel Core i5 LGA 1151 Processor
Intel Core i3 LGA 1151 Processor
Intel Pentium LGA 1151 Processor
Intel Celeron LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 91Watt

MEMORY
Support Dual Channel DDR4 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory

Recommended reading:Asus Prime B550M-A (Wi-Fi) m-ATX Gaming Motherboard

EXPANSION SLOT
1 x PCI-E x16 3.0 Slot
2 x PCI-E x1 2.0 Slot

STORAGE
4 x SATA3 Connector

USB
2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header

LAN
Realtek RTL8111H – 10/100/1000 Controller
Support Super LAN Surge Protection

INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

Recommended reading:MSI PRO Z690-A DDR4 ATX Gaming Motherboard | 12th Gen Intel Core CPU | LGA 1700 Socket | Max 128GB Memory Support

CODEC
Realtek ALC887 8-Channel HD Audio

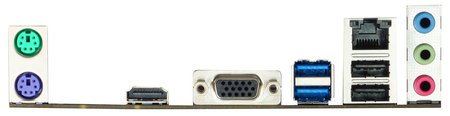

REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 3840 x 2160 @30Hz, compliant with HDMI 1.4a
1 x VGA Port, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector

INTERNAL I/O
1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 22.6cm x 17.7cm ( W x L )

Recommended reading:TECHCOM MOTHERBOARD G41 – 775 SOCKET

OS SUPPORT
Support Windows 7 / 8.1(x64) / 10(x64)

BUNDLE SOFTWARE
BullGuard
BIO-Remote2
Smart Speed LAN

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

FEATURES
Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
