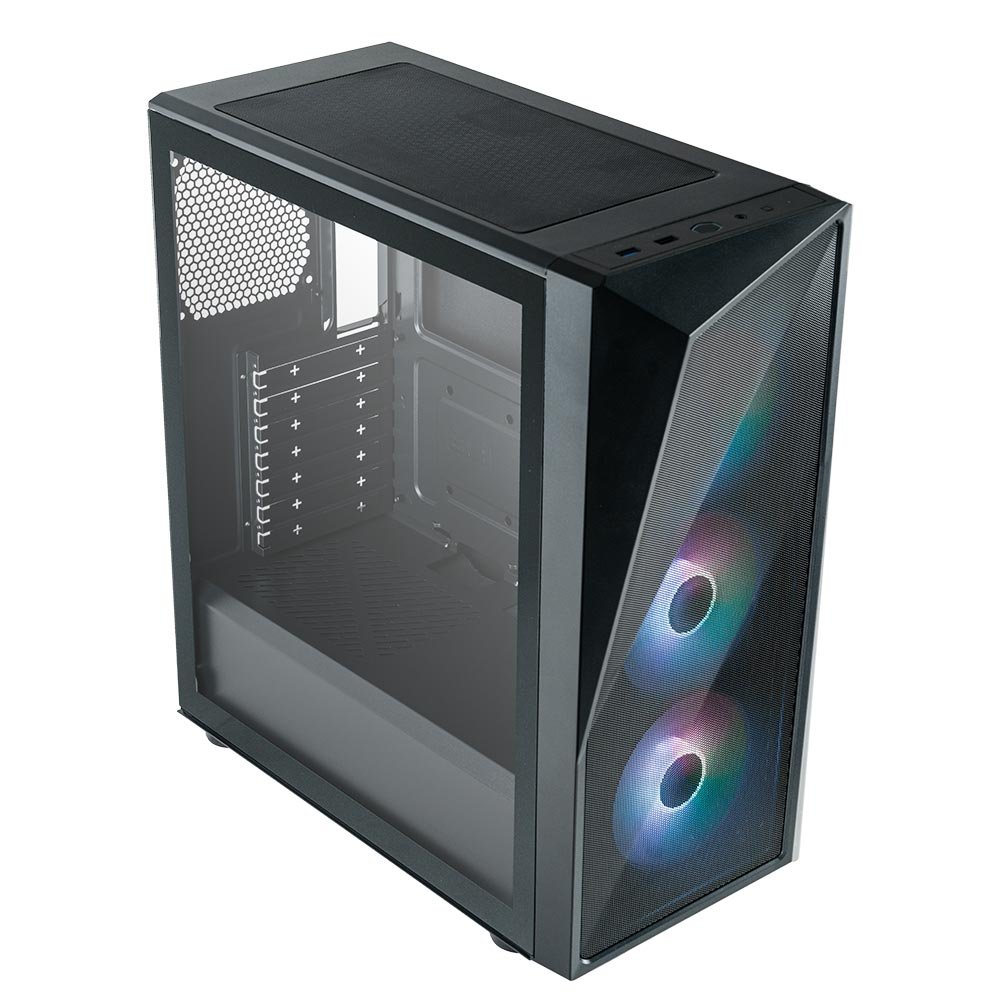

Cooler Master CMP 520 | Mid Tower Cabinet
Mid Tower Cabinet Type
Mini-ITX, Micro-ATX, ATX MB Support
Tempered Glass Side Panel (Left)
3x 120mm ARGB Fans Pre-installed
CF120P integrated ARGB Controller
Model – CMP 520
Front Panel – Mesh Geode Front Panel
Motherboard Support – Mini-ITX, Micro-ATX, ATX
USB support – 1 x USB 3.2 Gen 1 Type A, 1 x USB 2.0
Pre-installed Fans – 1 x CF120P ARGB+2 x CF120S ARGB (front)
OVERVIEW

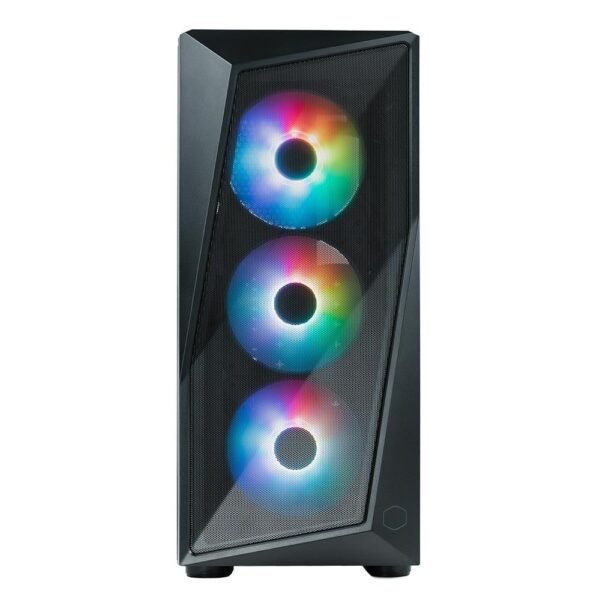

Like a geode cradling crystal, the Cooler Master CMP520’s asymmetrical front panel design frames three 120mm ARGB fans as the unique centerpiece of the build. The ample mesh provides generous intake for efficient cooling as well as dust filtration, allowing the lifetime of installed components to operate at maximum capacity.
Several lighting options are offered out of the box, customizable with a single click. Users can customize the lighting effects and color depth when connecting the fans to the motherboard to match the theme of their build or gaming environment. The perforated power supply shroud accommodates both actively and passively cooled PSUs, while cables are neatly spaced away for a wonderfully sleek construction.
Three pre-installed 120mm ARGB fans ensure stunning aesthetics, attractive design, and thermal excellence. Pre-installed with a reset button for streamlined control of lighting effects, users can also choose to connect fans to the motherboard for advanced customization. Inspired by clean-cut, asymmetrical crystal formation, the mesh front panel provides efficient dust filtration along with generous intake. For more versatile cooling options, there’s support for up to six fans, and front, top, and rear radiator support ensures performance isn’t compromised.
Support for a 350mm graphics card, a 161mm CPU cooler and multiple fan/radiator locations provide room for upgrades to stay ahead of the game. The PSU cover is ventilated at the top of the power supply location, this allows for actively cooling units to be installed with either an upward or downward fan, along with the possibility to install a passively cooled power supply.
FEATURES:
Cooler Master CMP 520’s awry front board configuration outlines the pre-introduced three 120mm ARGB fans as special highlights on the form.
Three 120mm ARGB Fans Included – Stunning aesthetics, eye-catching design, and thermal excellence are ensured by these fans.
Mesh Geode Front Panel – The mesh front panel offers generous intake and efficient dust filtration which is inspired by asymmetrical crystal formations.
Versatile Cooling Options – Support for up to six fans and front, top, and back radiator support guarantee that the exhibition isn’t compromised.
Full Black Coating & PSU Cover – With a PSU cover to hide cables, it makes sure that your system stands out with an all-black background.
Breathable Power Supply Shroud – Both active and passive cooled PSUs installed in multiple orientations are supported by the ventilated PSU cover.
Room For Upgrades – Support for up to a 350mm graphic card, a 161mm CPU cooler, and different fans/radiator areas give space for redesigns.
TECHNICAL SPECIFICATIONS
Product Name- CMP 520
Product Number–CP520-KGNN-S00
Materials
Exterior–Steel, Plastic
Left Side Panel–Tempered Glass
Volume (Liters Excl. Protrusions)–41.34L
Motherboard Support–Mini-ITX, Micro-ATX, ATX
Expansion Slots–7
Drive Bays
5.25 inch ODD–0
2.5 inch / 3.5 inch HDD–2
2.5 inch SSD–2
Input/output panel
USB Ports–1 x USB 3.2 Gen 1 Type A, 1 x USB2.0
Audio In / Out–1 x 3.5mm Headset Jack (Audio + Mic)
ARGB Controller–CF120P (integrated with fan) or M/B
Pre-installed Fan(s)
Top–N/A
Front–1 x CF120P ARGB + 2 x CF120S ARGB
Rear–N/A
Fan Support
Top–2 x 120 mm, 2 x 140 mm
Front–3 x 120 mm, 2 x 140 mm
Rear–1 x 120 mm
Clearances
CPU Cooler–161 mm
Power Supply–160 mm
Graphics Card–350 mm (w/o front fans & radiator)
Radiator Support–Top: 120 mm/240 mm* (*RAM height below 35 mm)
Cable Routing–Behind MB Tray: 18.5 mm
Dust Filters–Top, Bottom
Power Supply Support–Bottom Mount, ATX
Dimension (L x W x H)
Included Protrusions–439 x 204 x 463 mm
Excluded Protrusions–432 x 204 x 448 mm
Carton dimension (L x W x H)–520 x 267 x 505 mm
Weight (KG)
Net weight–6 kg
Gross weight–7 kg
