Cooler Master MasterBox NR600 Mid Tower Gaming Cabinet
Mid-tower Case Type
2x USB 3.0, 1x 3.5mm Headset Jack
166mm CPU Cooler Clearance
410mm GFX Clearance
ATX, Micro-ATX, Mini-ITX Motherboard Support
Case Size – Mid Tower
Motherboard Support – Mini-ITX, Micro-ATX, ATX
Expansion Slots – 7
Pre-installed Fans – 1x120mm (front), 1x120mm (rear)
USB Ports – 2 x USB 3.0
OVERVIEW
The Masterbox NR600 is a pure and simple design focused on airflow performance. A single-layer, fine mesh makes up the entire front panel, providing efficient airflow while also acting as a dust filter. The tempered glass side panel sits perfectly flush against the chassis, securely and discreetly mounted by a system of tabs and thumbscrews

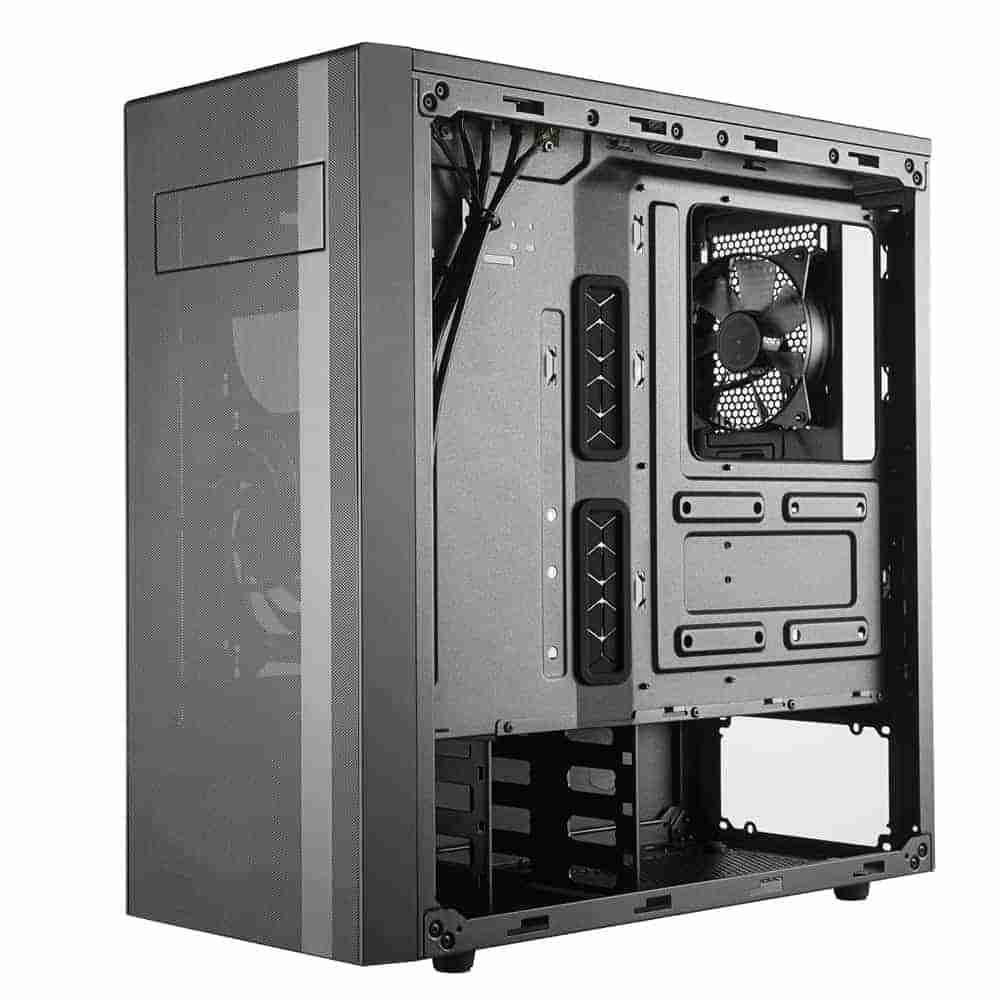

A total of 5 x 2.5 inch and 4 x 3.5-inch drives can be mounted using the tool-less system. Behind the motherboard tray, as well as in the HDD cage, the storage can be mounted on the PSU shroud. The single 4 pole headset jack has both audio and microphone capabilities simultaneously so there is no need for a separate jack.
TECHNICAL SPECIFICATION
Product– MasterBox NR600
Model Number– MCB-NR600-KG5N-S00
Motherboard Support– Mini-ITX, Micro-ATX, ATX
Expansion Slots– 7
5.25 inch Drive Bays– 1
3.5 inch HDD Drive Bays– 4
2.5 inch SSD Drive Bays– 5
I/O Panel – USB Ports– USB 3.0 x 2
I/O Panel – Audio In / Out– 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fan(s) – Front– 120mm x 1
Pre-installed Fan(s) – Rear– 120mm x 1
Fan Support – Front– 140mm x 2/ 120mm x 2
Fan Support – Top– 140mm x 2 / 120mm x 2
Fan Support – Rear– 120mm x 1
Radiator Support – Front– 280 / 240 / 140 / 120mm
Radiator Support – Top– 240mm (with ODD removed) / 120mm (MasterBox NR600 with ODD) (35mm max motherboard component height)
Radiator Support – Rear– 120mm x 1
Clearance – CPU Cooler– 166mm / 6.54 inch
Clearance – Power Supply– 180mm / 7.08 inch
Clearance – Graphics Card– 410mm / 16.14 inch
Cable Routing – Behind MB Tray– 20~28mm / 0.78~1.10 inch
Dust Filters– Top, Bottom
Power Supply Support– Bottom Mount, ATX
Dimensions– 478 (L) x 209 (W) x 473 (H) mm
Specification: Cooler Master MasterBox NR600 Mid Tower Gaming Cabinet
EAN, GTIN, UPC–
4719512079348
Product Type–
PC Cabinets
Brand–
Cooler Master
COLOR–
BLACK
FORM FACTOR–
MID TOWER
MATERIAL–
STEEL+PLASTIC
SIDE PANEL–
TRANSPARENT
MOTHERBOARD COMPATIBILITY–
ATX,M-ATX,MINI-ITX
FANS–
2
RADIATOR COMPATIBILITY–
YES
LIGHTING–
NONE
IDEAL FOR GAMING–
YES
WARRANTY–
2 Years Warranty
