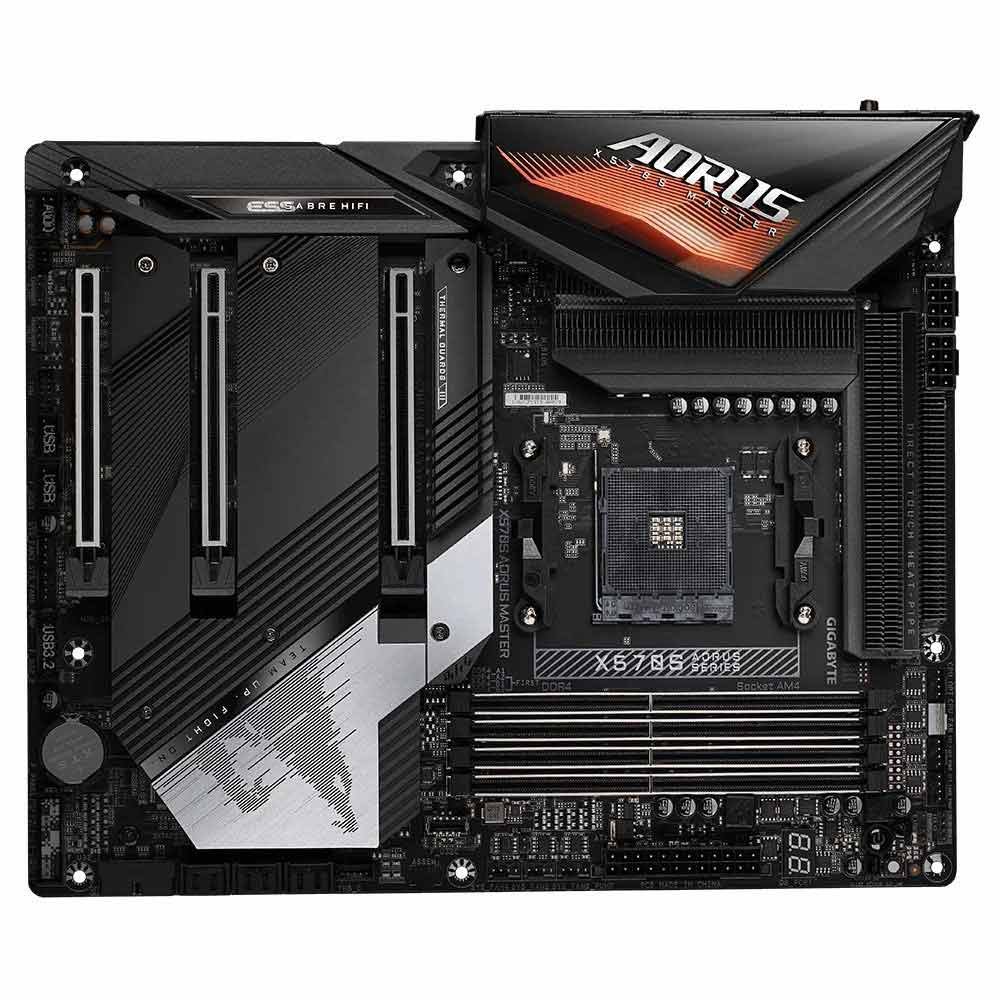

Gigabyte X570S Aorus Master | ATX Motherboard
ATX Form Factor
AMD X570 Chipset
AMD AM4 CPU socket
4 x DDR4 DIMM (128GB) Memory
Realtek ALC1220-VB audio CODEC
Motherboard Chipset – AMD X570
CPU Socket – AMD AM4
Max Memory Slots – 2
Max Memory Support – 128 GB
Motherboard Form Factor – ATX

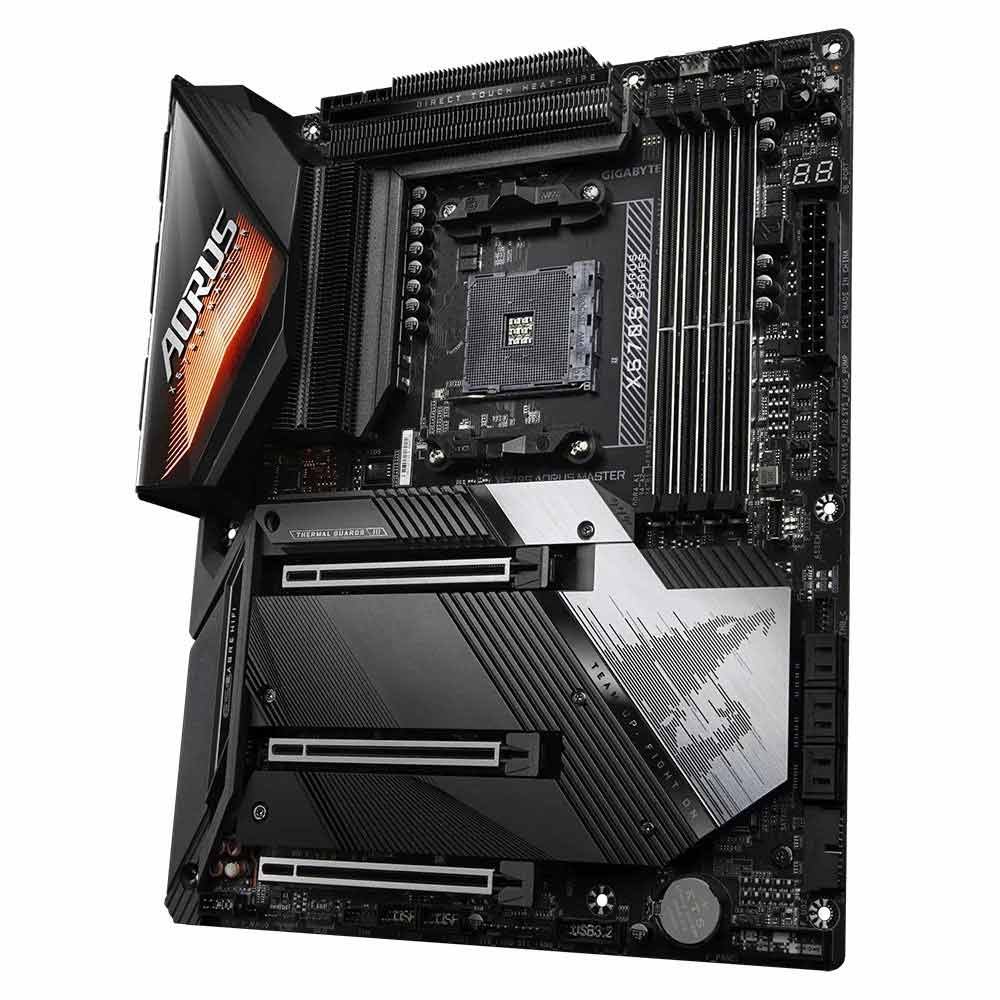

OVERVIEW
The GIGABYTE X570S motherboard features advanced power solutions, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system fast and powerful, even under heavy workloads. Furthermore, in order to unleash the full potential of the latest AMD Ryzen 5000 series processors, the motherboard requires the best CPU power, memory, and IO design. With the best quality components and GIGABYTE R&D design capability, X570S is a true beast among AORUS MASTER motherboards.
X570S AORUS MASTER uses an unprecedented and innovative thermal design to ensure the best CPU, chipset, SSD stability, and low temperatures under full loading applications and gaming. Additionally, the X570S AORUS MASTER features RGB FUSION 2.0 that offers light-affected options and customized settings along with excellent aesthetics and enables enthusiasts to build a stylish and unique gaming PC.
TECHNICAL SPECIFICATIONS
CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
Chipset AMD X570
Memory 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
Audio 1. Realtek ALC1220-VB audio CODEC
* The front panel line out jack supports DSD audio.
2. ESS SABRE9118 DAC chip
3. Support for DTS: X Ultra
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out
LAN Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX210
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU:
1. AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series Processors support PCIe 4.0 x16 mode
2. AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series Processors support PCIe 3.0 x16 mode
3. AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series Processors support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated into the CPU:
1. AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series Processors support PCIe 4.0 x8 mode
2. AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series Processors support PCIe 3.0 x8 mode
3. AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series Processors do not support this slot
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset:
1. Supporting PCIe 4.0* /3.0 x4 mode
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Multi-Graphics Technology 1. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only.
Storage Interface 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMDRyzen 2000SeriesProcessors/AMDRyzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. Supporting PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
2 x M.2 connectors (M2C_SB/M2D_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated into the Chipset:
1. Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
USB CPU:
1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 2 x USB 3.2 Gen 1 ports on the back panel
3. Chipset+ASMedia USB 3.2 Gen 2×2 Controller:
4. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
Chipset:
1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 4 x USB 3.2 Gen 1 ports, available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C header, with USB 3.2 Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
19. 1 x Thunderbolt add-in card connector
20. 2 x temperature sensor headers
21. 1 x power button
22. 1 x reset button
23. 1 x Clear CMOS jumper
24. Voltage Measurement Points

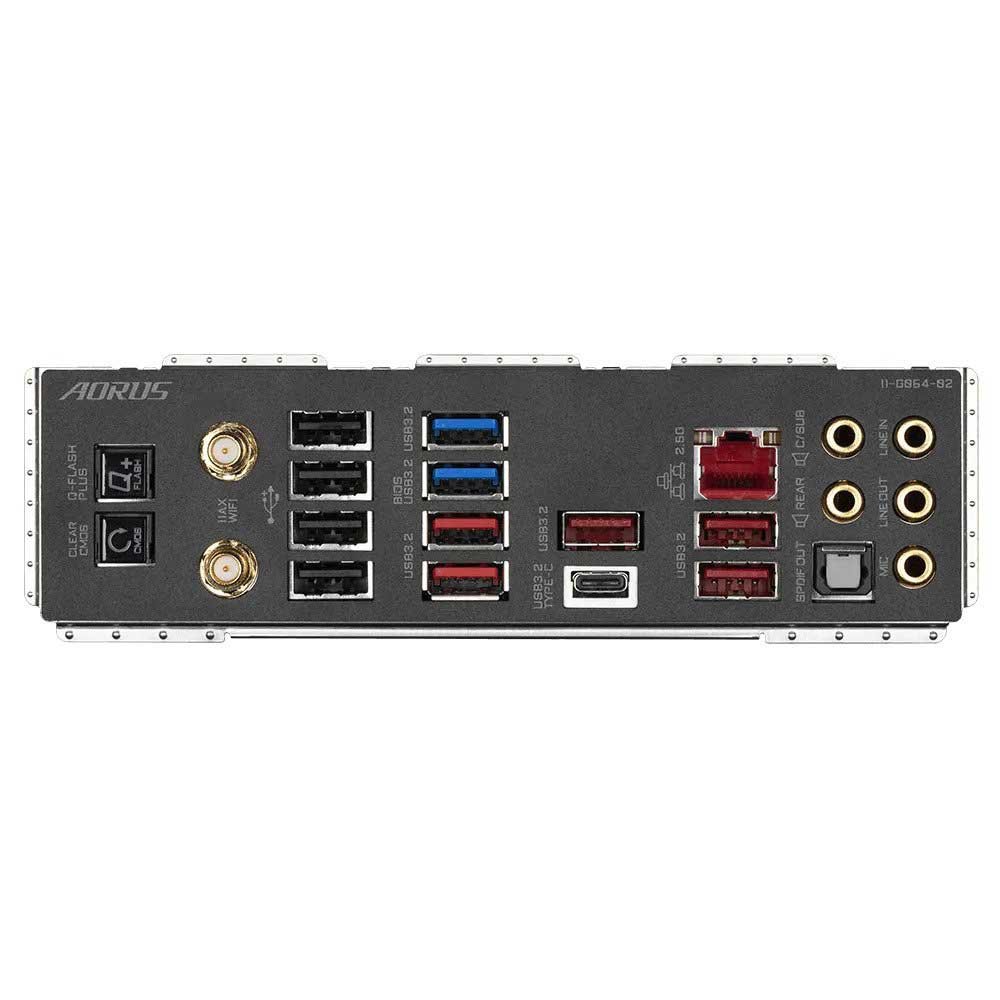

Back Panel Connectors 1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
5. 5 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB 3.2 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring 1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
8. Noise detection
BIOS 1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software 1. Norton Internet Security (OEM version)
2. cFosSpeed
Special Features 1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Operating System Support for Windows 11 64-bit, Support for Windows 10 64-bit
Form Factor ATX Form Factor
Dimension 30.5 cm x 24.4 cm
Specification: Gigabyte X570S Aorus Master | ATX Motherboard
Product Type
Motherboards
CPU PLATFORM
AMD
CPU SOCKET
AM4
Brand
Gigabyte
CHIPSET
AMD X570
MAXIMUM MEMORY
128 GB
FORM FACTOR
ATX
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
