Lian Li A4 H2O A4 | Mini-ITX Micro Tower Cabinet | Silver
Mini-ITX Tower Gaming Cabinet
GPU Card Length 322mm
Radiator Support up to 240mm
Fan Support 120mm
3 Expansion Slot
Model – A4 H20 (A TRIBUTE TO SFF)
Radiator Support – Up to 240mm
Side Panel – Mesh
Case Type – Mini-ITX Tower
Motherboard Support – Mini-ITX
OVERVIEW
Lian Li is a world-renowned brand for high-quality computer cases and computer accessories. The Lian Li A4 H2O A4 is a sleek and minimalist computer case that can be used for a variety of purposes. The design is clean and features an anodized aluminum surface with a brushed aluminum appearance. The H2O A4 is capable of holding up to 4 3.5-inch drives, 2 2.5-inch drives, and 2 PCIe slots. The A4 is available in silver or black and is priced at $240.
The Lian Li A4 H2O A4 Mini-ITX Micro Tower Cabinet Silver is sleek, stylish, and functional. It features a water-cooling compartment for your CPU and GPU, as well as a slot for an optical drive. The cabinet is made of aluminum, which makes it both lightweight and durable. It has a power button, two USB 3.0 ports, and two audio ports.
FEATURES:
The Lian Li A4-H2O is an 11-liter little structure factor case, a coordinated effort project with DAN Cases. In light of the first DAN A4-SFX case sandwich design idea, the A4-H2O proceeds with the moderate and smaller structure factor with further developed equipment similarity (counting AIO water cooling) and works on the establishment.
11-Liter Form Factor – At just 11 liters, the Lian Li A4-H2O is perhaps one the smallest case available that supports triple-space GPU and freedom for 240 AIO water cooling.
SIZE COMPARISON – The Lian Li A4-H20 is more modest in size than most control centers, and the moderate plan suits any living space or any diversion place to appreciate games or motion pictures.

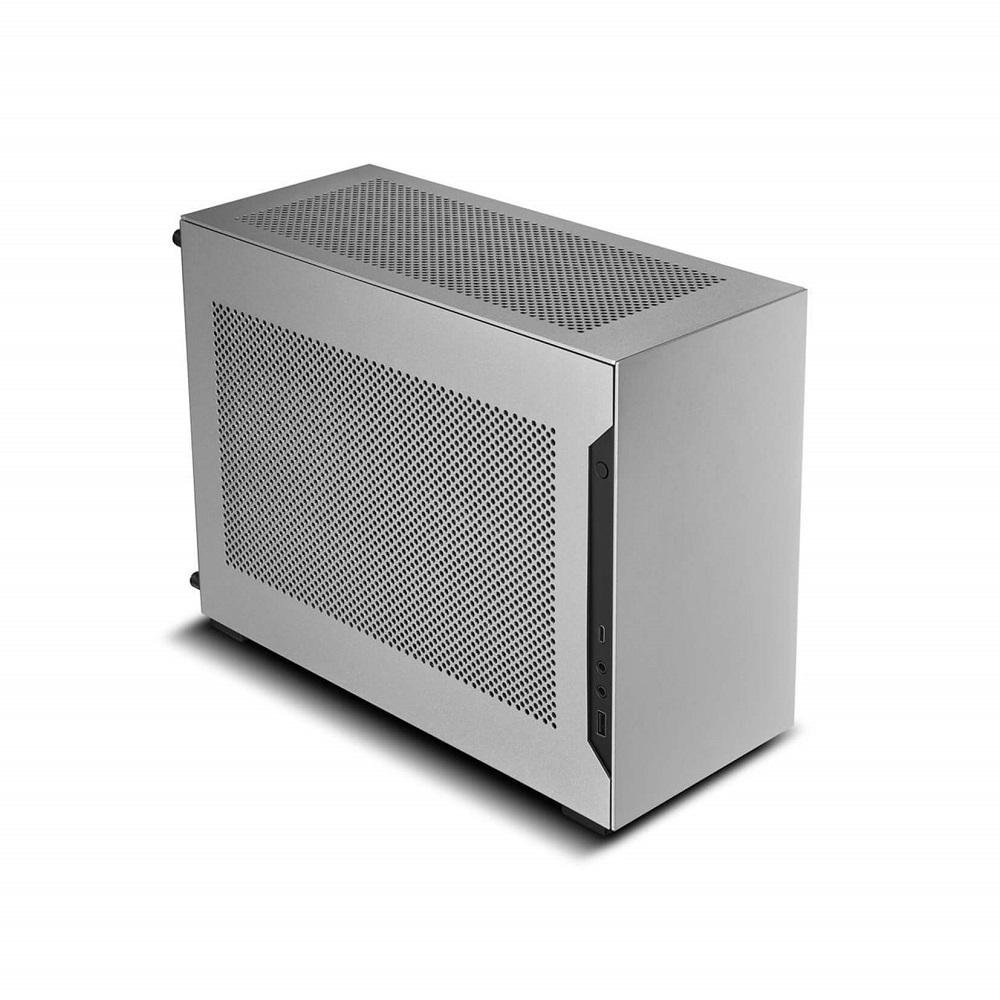

Moderate Design (silver) – A moderate plan, the Lian Li A4-H2O has premium aluminum outside with ventilation from practically most sides. The Lian Li A4-H2O is accessible in dark or silver.
Sandwich Layout Design – The sandwich design considers a triple-space GPU to squeeze into the minimized size case. Coordinated with a PCIe Gen. 3 or Gen. 4 riser link, the GPU is situated behind the motherboard and leaves space for a 240mm radiator at the highest point of the case. Base, side, and top lattice boards guarantee that the parts get cooled straightforwardly with natural air consumption.
Easy AIO Installation – A removable section at the top makes the establishment of radiators up to 240mm long a lot simpler. The top compartment obliges a fan radiator combo of up to 55mm in thickness.
Supports SFX, SFX-L Power Supply – A removable mounting section is intended to help SFX and SFX-L power supplies. A power rope expansion is likewise included and pre-directed to try not to disrupt other equipment.
Fully Removable Panels – Front, side, top, and baseboards can be generally eliminated effectively to give more straightforward admittance to the establishment or potentially link the executives.
PCIe-3.0 and PCIe 4.0 – The A4-H2O incorporates a PCIe Gen.3 or PCIe Gen. 4 riser link, to in an upward direction mount the GPU and place it behind the motherboard. The PCIe 4.0 riser link upholds the move pace of 16GT/s (twofold the speed of PCIe 3.0). PCIe Gen.4 riser links are in reverse viable with PCIe Gen 3.
Input/output and Power – Situated on the left half of the case inside a recessed pattern, the front IO incorporates a USB 3.1 Type-C (inner Key-A) port, a Mic port, an HD-Audio port, and a USB 3.0 Type-A port (interior 19pin). At the highest point of the break is an exceptional grade power button.
Triple-space GPU Compatible – Eliminating the front board gives a wide opening at the front to embed bigger illustrations card into the case easily. The roomy inside upholds a triple-space design card of up to 322mm.
Optimized airflow for 2 opening GPUs – The additional stalemates help push a two-opening GPU toward the sideboard to deplete or allow natural air straightforwardly out of the skeleton.
Removable Bottom Panel – Cable Management and Storage – The removable base board gives extra admittance within the case and makes for a simpler link for the executives. A 2.5″ SSD drive can likewise be joined onto the baseboard.
A Dan Cases Collaboration – The Lian Li A4-H2O is an update to the well-known DAN A4-SFX case with added water cooling support. This is an exceptional joint effort with Daniel Hansen from Dan Cases. The A4-H2O is fabricated and sold by LIAN LI.
TECHNICAL SPECIFICATIONS
PRODUCT NAME– A4-H2O
MODEL– A4-H20 A3, A4-H20 A4
COLOR– Silver Exterior Matte Black Interior
RISER CABLE GENERATION– PCIe 3.0 , PCIe 4.0
CAPACITY– 11L
MATERIALS USED– Aluminum Exterior, SPCC Steel Interior
MOTHERBOARD SUPPORT– Mini-ITX
FAN SUPPORT– Top：2 x 120mm
RADIATOR SUPPORT– Top：1x 240mm (55mm. max total thickness with fans)
PSU SUPPORT– SFX, SFX-L
GPU LENGTH CLEARANCE– Max 322mm
CPU COOLER CLEARANCE– Max 55mm
DRIVE SUPPORT– 1x 2.5 inch SSD
EXPANSION SLOT– 3
Input/output PORTS– 1x USB 3.0 TYPE-A, 1x USB 3.1 TYPE-C, 1x Mic, 1x HD Audio
DIMENSION– (D) 326mm x (W) 140mm x (H) 244mm
WEIGHT (APPROXIMATE)– 8KG
Product Type
PC Cabinets
Brand
Lian Li
COLOR
SILVER
FORM FACTOR
MINI ITX
MATERIAL
ALUMINIUM, MESH, SPCC, STEEL
SIDE PANEL
MESH, NON TRANSPARENT
MOTHERBOARD COMPATIBILITY
MINI-ITX
LIGHTING
NONE
FANS
NONE
RADIATOR COMPATIBILITY
YES
IDEAL FOR GAMING
YES
WARRANTY
1 Year Warranty
