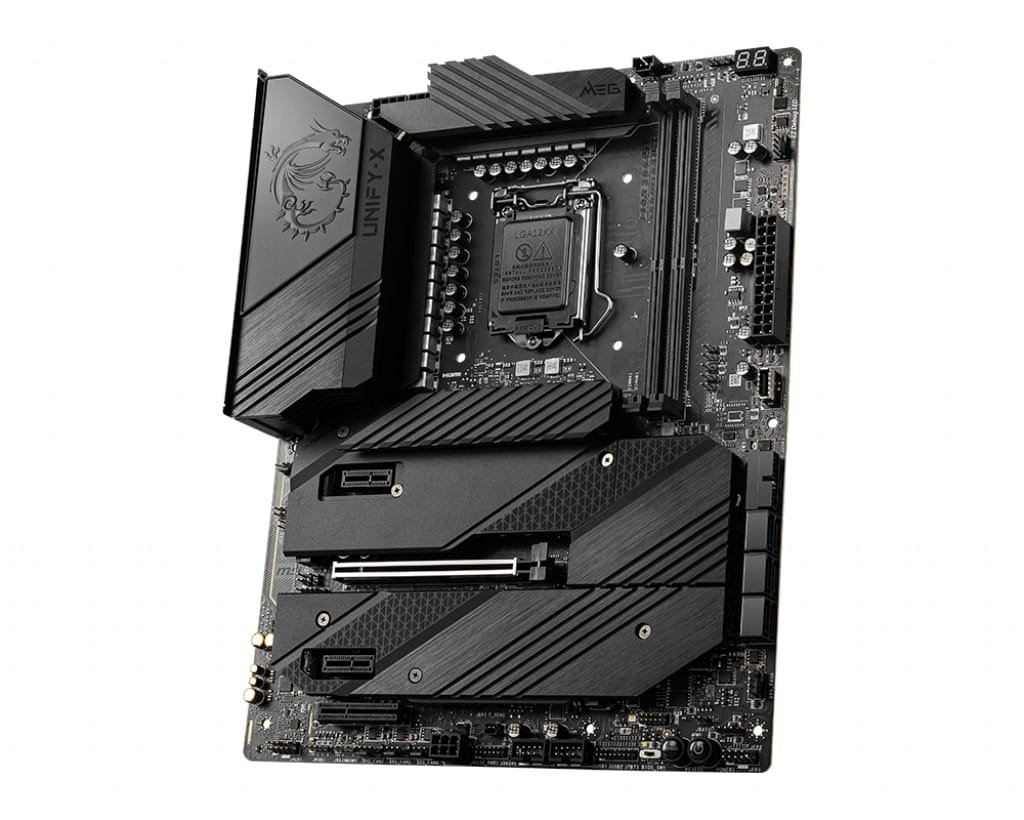

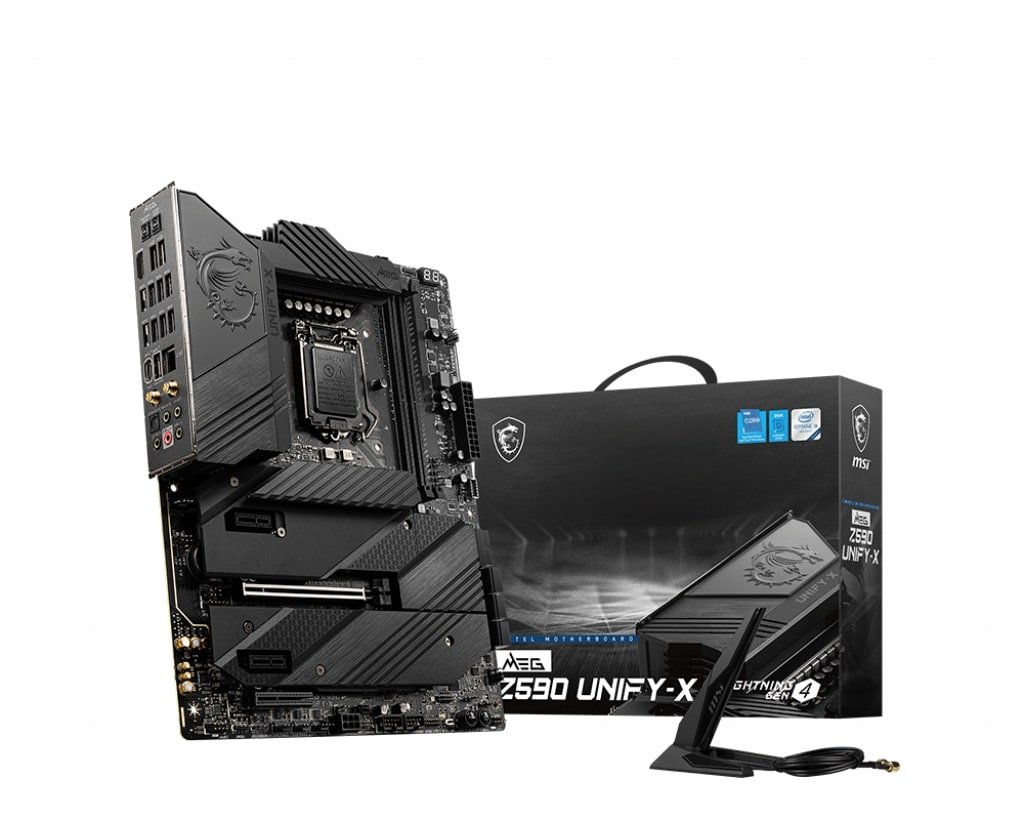

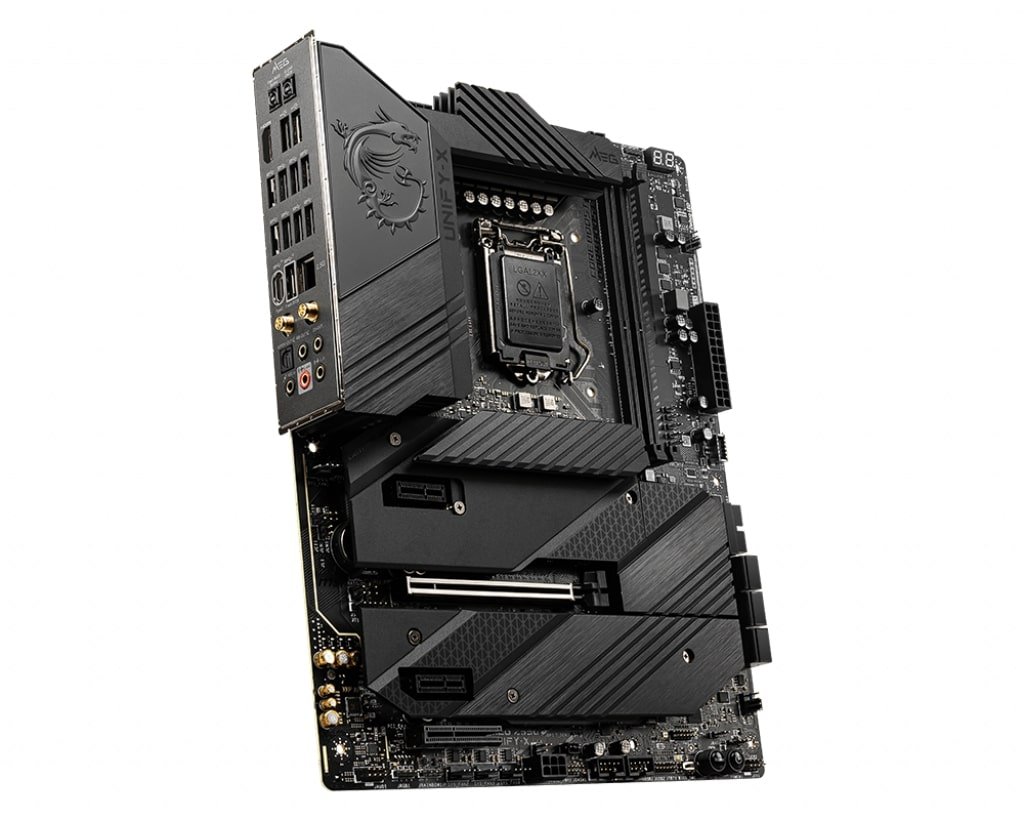

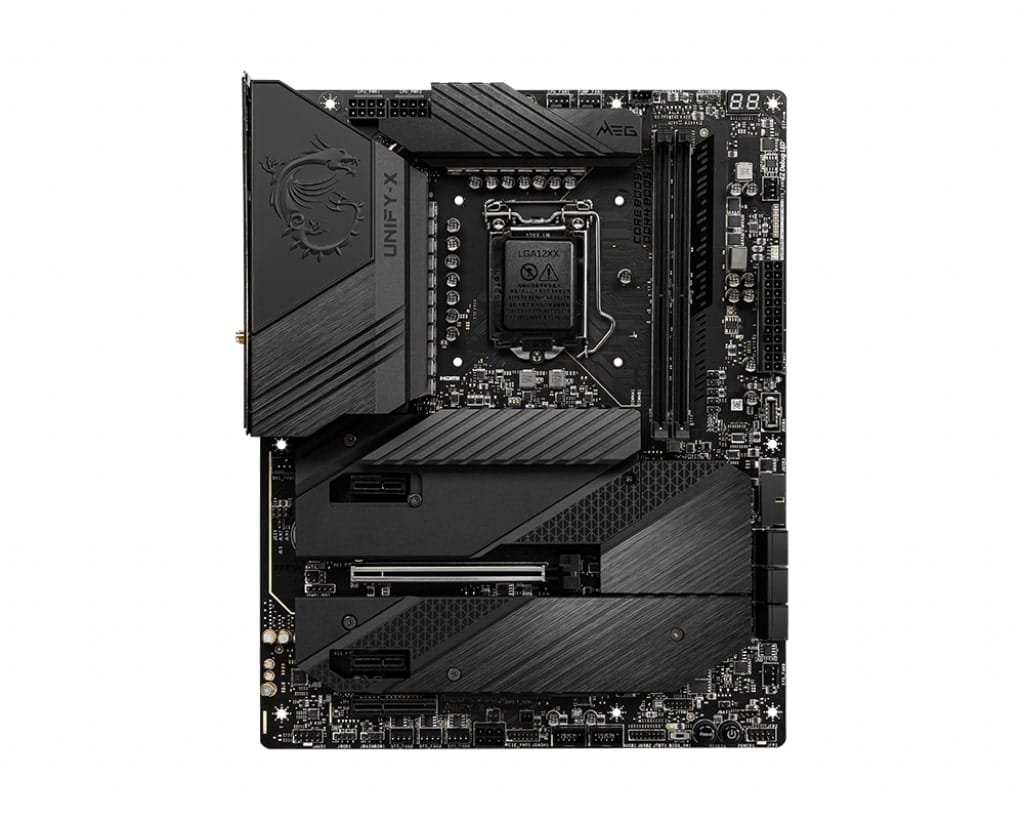

MSI MEG Z590 Unify-X ATX Gaming Motherboard
WARRANTY
3 Years Warranty
Brand
MSI
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1200
FORM FACTOR
ATX
MEMORY TYPE
DDR4
CHIPSET
Intel Z590
MAXIMUM MEMORY
64 GB
IDEAL FOR GAMING
YES
FEATURES :
Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Dedicated for Extreme OC : The top-notch R&D design and exclusive 2 DIMM solution deliver the world class memory performance.
Quadruple M.2 Connectors : Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Extreme Power Design : INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
Outstanding Cooling Solution : Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E : Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning USB 20G : Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Smart Button : One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
8 Layer PCB with 2oz Thickened Copper : Provides higher performance and long-lasting system stability without any compromise.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE :
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE :
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING :
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT :
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
16+2+1 PHASES WITH 90A SMART POWER STAGE :
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases. Combining dual power connectors and exclusive Mirrored Power Arrangement, MEG series motherboard is ready for the challenge of high-end processors.
CORE BOOST :
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.
1-SECOND OVERCLOCKING :
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.
LOAD-LINE CALIBRATION :
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.
OVERVOLTAGE PROTECTION :
Prevents potential short-circuit damage to the CPU and other critical components.
DIGITALL POWER DESIGN :
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for CPU overclocking.
DOUBLE POWER CONNECTORS :
Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.
SUPPLEMENTAL PCIE POWER CONNECTOR :
The extra 6-pin PCI-E power connector provides dedicated power for PCI-E slots, augmenting the power provided by the 24-pin and the graphics card directly.
PRE-INSTALLED IO SHIELD :
Featuring the pre-installed IO shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.
BOOT UP GUARANTEED :
Having trouble with updating the BIOS or somehow corrupted it? Don’t worry! With System-Saver, use one of 3 easy to use options to successfully boot your system again.
XL CLIP :
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
SMART BUTTON :
One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
DEBUG LED :
Displays the error code for troubleshooting. Also functions as temperature monitor.
EZ DEBUG LED :
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
MORE RELIABLE CIRCUIT TRANSMISSION :
8 PCB layers allows for higher bandwidth and faster transfer speeds. This is also beneficial for reliable circuit transmission.
PCB WITH 2OZ THICKENED COPPER :
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR :
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
ULTIMATE MOTHERBOARD PROTECTION :
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
SUPER STABLE GAMING WITH THE HIGHEST QUALITY COMPONENTS :
MSI uses high quality components rated for reliable operation even under extreme conditions.
TITANIUM CHOKE III :
Ti choke III has 30% improved power delivery efficiency compared to its predecessor, allowing for improved overclocking stability.
90A SMART POWER STAGE :
Next-gen 3-in-1 Mosfet package capable of delivering more power at precise timings with fewer components.
SOLID CAP :
Japanese made Solid CAPs are built for high-reliability motherboards with their aluminum core design. These capacitors have low Equivalent Series Resistance (ESR) and are rated to work for more than 10-years.
CERTIFIED FOR GAMING :
MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world’s best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that’s both powerful and reliable.
WINDOWS 10 CERTIFIED :
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
LIGHTNING GEN 4 M.2 :
Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
FAST AND FUTURE-READY STORAGE :
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
OPTIMIZED STORAGE DESIGN :
MEG Z590 UNIFY series motherboard features exclusive onboard quadruple M.2 connectors for the maximum storage performance. The Industry leading design maximizes bandwidth to fully utilize professional graphics cards and high-end storage devices, provides multiple configurations for demanding gamers and power users.
EASY RAID SETUP WITH M.2 GENIE :
Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. That’s why we created M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.
OPTANE – BOOST YOUR HDD TO PERFORM LIKE AN SSD :
PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.
A HUGE STEP OF DDR PERFORMANCE :
The top-notch R&D design and exclusive 2 DIMM solution for an even clearer memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
EXTREME STABILITY & COMPATIBILITY TESTING :
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
MEMORY FORCE – EASY TUNING YOUR DDR4 MEMORY :
MSI MEG series motherboards feature exclusive Memory Force function which shows the current state of DDR4 memory. This patent-pending feature simplifies the complicated training flow to an easy graphic that helps you determine the direction of overclocking without the redundant reboot and testing process.
EASY OVERCLOCKING WITH XMP PROFILE :
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
CLICK BIOS 5 :
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records.
MSI CENTER :
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
SOUND CLEARLY, TUNE SMARTLY :
The AI-powered noise cancellation is trained through deep neural network (DNN), the model is generated with more than 500 million data, simulate the way human brain works. When a sound is heard, the model automatically recognizes and separate vocal sound from background noises; hence, filtering out all the unwanted Noise.
RESIZABLE BAR (RE-SIZE BAR) :
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK :
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY :
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY :
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2×2 20G :
Using USB 3.2 devices has never been faster! MEG Z590 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB FRONT TYPE-C :
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
HIGH DEFINITION ALC4080 AUDIO PROCESSOR :
From HD-A to USB Interface, twice the DAC format from 32-bit/192kHz to 32-bit/384kHz, deliver the highest sound quality.
HIGH QUALITY AUDIO CAPACITORS :
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
HIGH QUALITY AUDIO JACKS WITH S/PDIF :
Keep your sound perfect by transmit your audio with pure digital signal.
DEDICATED HEADPHONE AMPLIFIER :
A dedicated headphone can drive audiophile headphones up to 600Ω impedance, delivering studio-grade sound quality from your gaming PC.
ISOLATED AUDIO DESIGN :
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.
SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS :
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.
ALL NEW NAHIMIC 3 – FOR NEXT LEVEL AUDIO IMMERSION :
Get ready to be amazed by the all new Nahimic 3 and live the gaming immersion like never before! With simple and intuitive new UI, the Nahimic 3 not only further enhances in game 3D surround sound, but also offers even more finite control over your music, movies, and conference calls.
TECHNICAL SPECIFICATIONS :
PROCESSOR
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
CHIPSET
Intel Z590 Chipset
MEMORY
2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1
Max overclocking frequency :
-1DPC 1R Max speed up to 5600 MHz
-1DPC 2R Max speed up to 4800+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
EXPANSION SLOTS
1x PCIe x16 slot (PCI_E2, from CPU)
-Supports up to PCIe 4.0 x16 with11th Gen CPU
-Supports up to PCIe 3.0 x16 with10th Gen CPU
1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)
2x PCIe 3.0 x1 slots (from Z590 chipset)
*PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS selection.
*PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.
MULTI-GPU
Supports 2-Way AMD CrossFire Technology
ONBOARD GRAPHICS
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
*Available for the processor with integrated graphics.
*Graphics specifications may vary depending on the CPU installed.
STORAGE
6x SATA 6Gb/s ports (from Z590 chipset)
4x M.2 slots (Key M)
-M2_1 (from CPU)
–Available only on 11th Gen Intel CPU
–Supports up to PCIe 4.0 x4
–Supports 2242/ 2260/ 2280/ 22110 storage devices
-M2_2, M2_3 slots
–Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)
–Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)
–M2_2 supports 2242/ 2260/ 2280 storage devices
–M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices
-M2_4 slot (from Z590 chipset)
–Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
*SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
*SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot.
*Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
*PCIe 4.0 specification is available only on 11th Gen Intel CPU.
*PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
Intel Z590 Chipset
-1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
-2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector)
-10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector)
-2x USB 2.0 ports on the back panel
Hub-GL850G
-4x USB 2.0 ports through internal USB 2.0 connector
AUDIO
Realtek ALC4080 Codec
-7.1-Channel High Definition Audio
-Supports S/PDIF output
LAN
1x Intel I225-V 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH
Intel WiFi 6E AX210
-The Wireless module is pre-installed in the M.2 (Key-E) slot
-Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
-Supports 802.11 a/ b/ g/ n/ ac/ ax
-Supports Bluetooth 5.2, FIPS, FISMA
*Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
*Bluetooth 5.2 will be ready in WIN10 21H1.
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin ATX PCIE power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 2-pin Thermal Sensors connector
1xTPM module connector
1x Tuning Controller connector
1x TBT connector (Supports RTD3)
LED FEATURES
1x 2-Digit Debug Code LED
4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin ITORSAIR LED connector

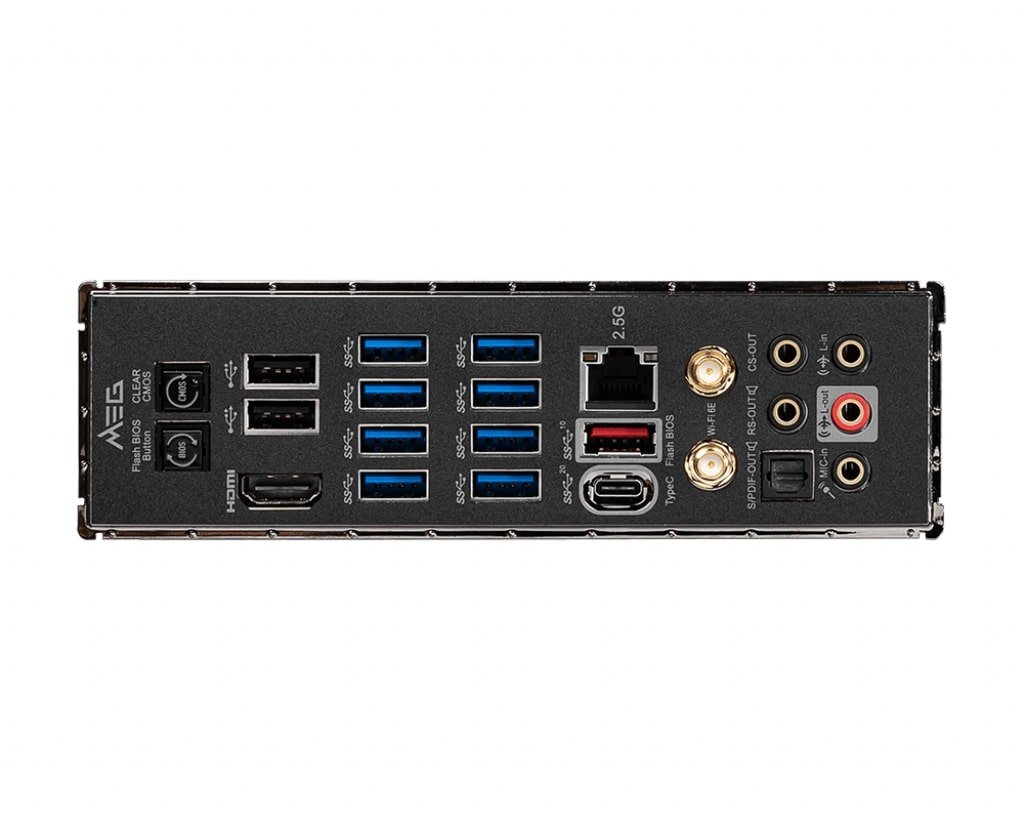

BACK PANEL PORTS
Clear CMOS Button
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2×2 20Gbps (Type-C)
Optical S/PDIF-Out
DIMENSIONS
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows 10 64-bit
