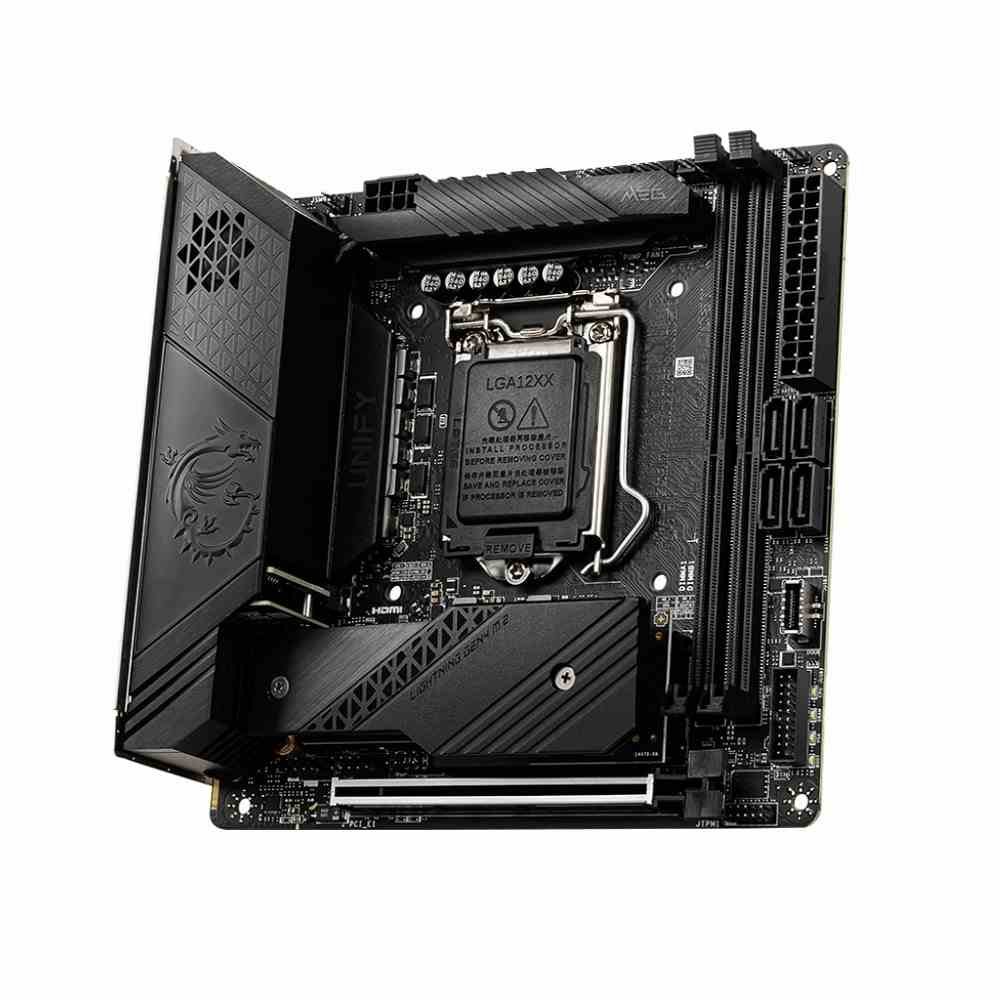

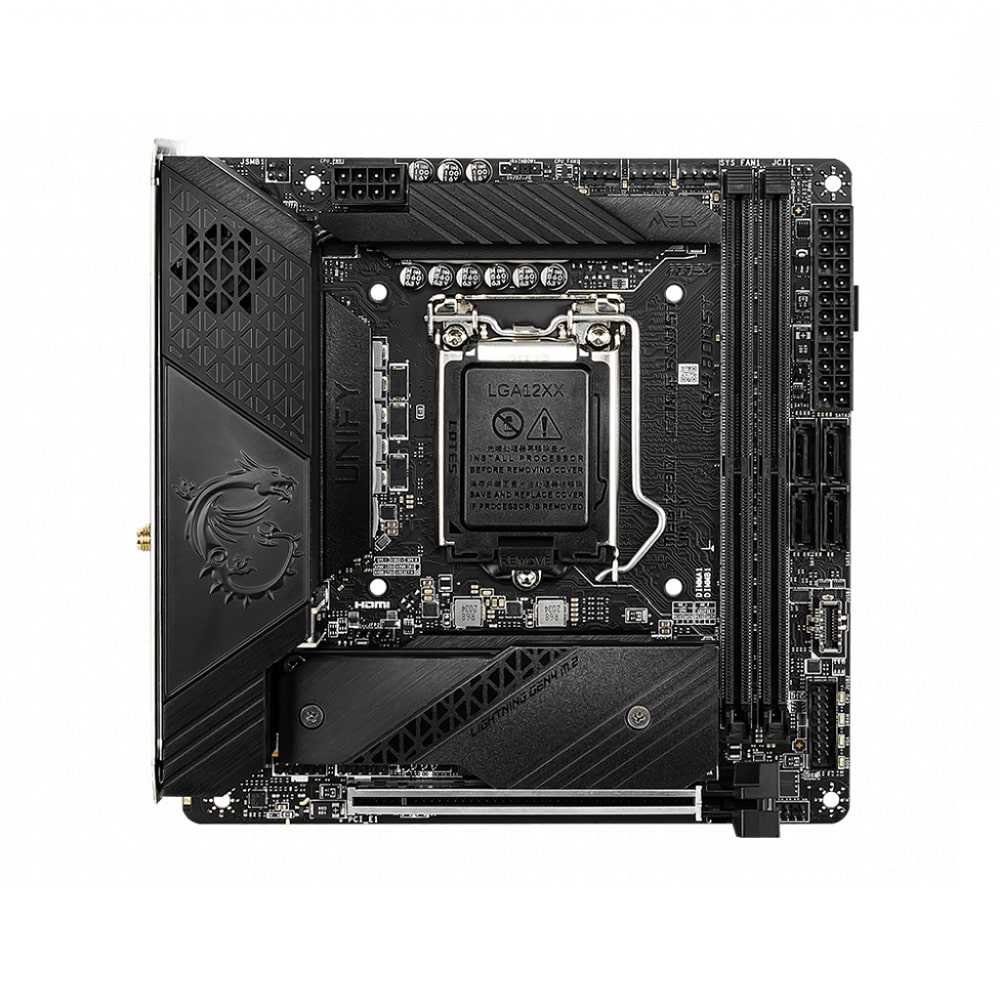

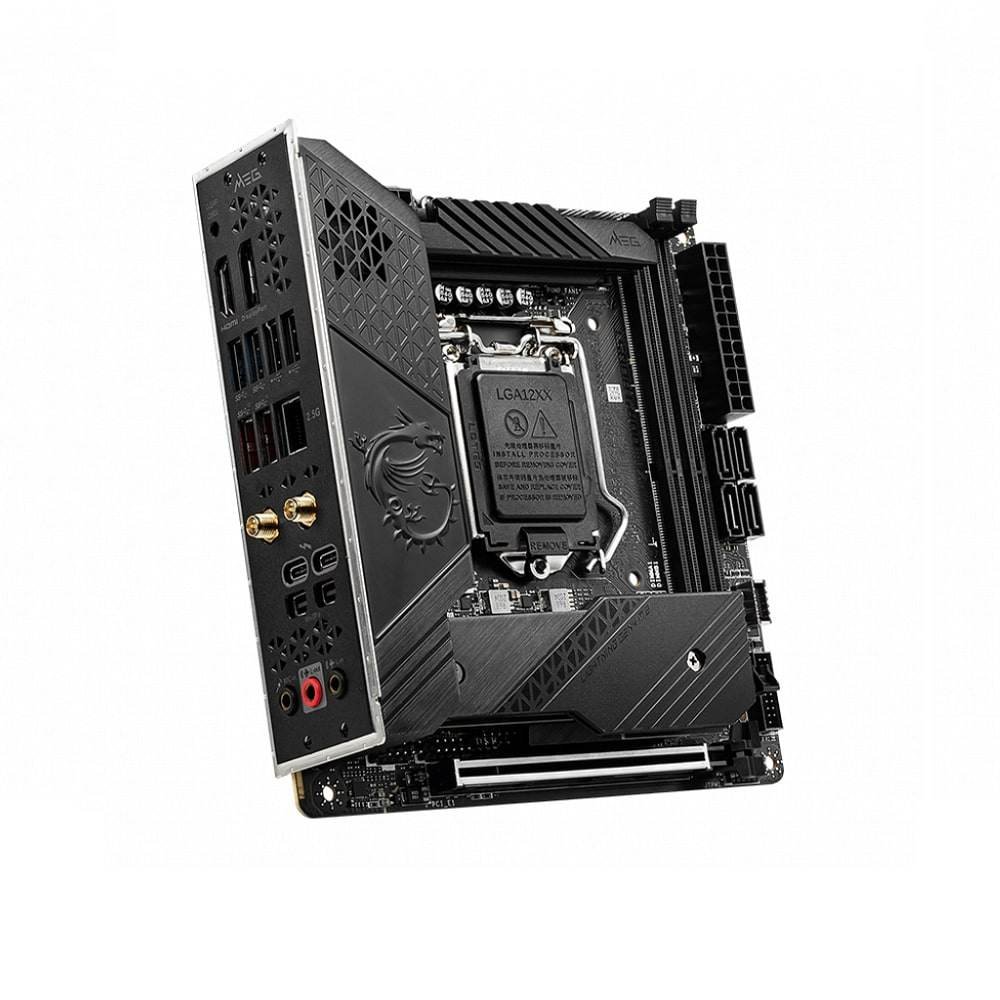

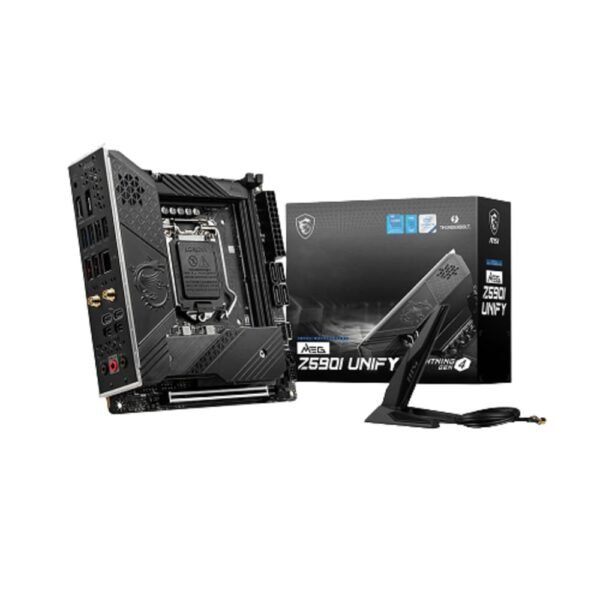

MSI MEG Z590I Unify Mini-ITX Gaming Motherboard
Mini-ITX Form Factor
LGA 1200 CPU Socket
Intel Z590 Chipset
DDR4 Up to 64 GB Memory
Windows 10 64-bit Supports
Max CPU Support – i9
Socket – LGA 1200
Form Factor – ATX
DIMM Slots – 4
Operating System – Support for Windows 10 64-bit
TECHNICAL SPECIFICATIONS
CPU_ i9
Socket_ 1200
Processor_ Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron processors 1
Processor socket LGA1200
Chipset_ Intel Z590 Chipset
Form Factor_ Mini-ITX
Memory_ 2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/2666/2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1
Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile [XMP]
DIMM Slots_ 2
LAN_ 1x Intel I225-V 2.5Gbps LAN controller
Wireless LAN & Bluetooth_ Intel Wi-Fi 6E AX210
The Wireless module is pre-installed in the M.2 [Key-E] slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.22, FIPS, FISMA
Expansion Slots_ 1x PCIe x16 slot
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 11th Gen Intel CPU
LED Features_ 4x EZ Debug LED
1x 3-pin RAINBOW LED connectors
Thunderbolt 4_ Intel JHL8540Thunderbolt 4 Controller
2x Thunderbolt 4 (USB-C) ports on the back panel
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
Onboard Graphics_ 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Storage_ 4x SATA 6Gb/s ports (from Z590 chipset)
2x M.2 slots (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset)
Supports 2280 storage devices
M2_2 slot (from Z590 chipset)
Supports PCIe 3.0 x4 only
Supports 2280 storage devices
Intel Optane Memory Ready1
Supports Intel Smart Response Technology for Intel Core processors
RAID_ Intel Z590 Chipset
Supports RAID 0, RAID1, RAID 5, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB_ Intel Z590 Chipset
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
Audio_ Realtek ALC1220P Codec
7.1-Channel High Definition Audio
Internal Connectors_ 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots [M-Key]
1x USB 3.2 Gen2 10Gbps Type-C port
1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]
1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector

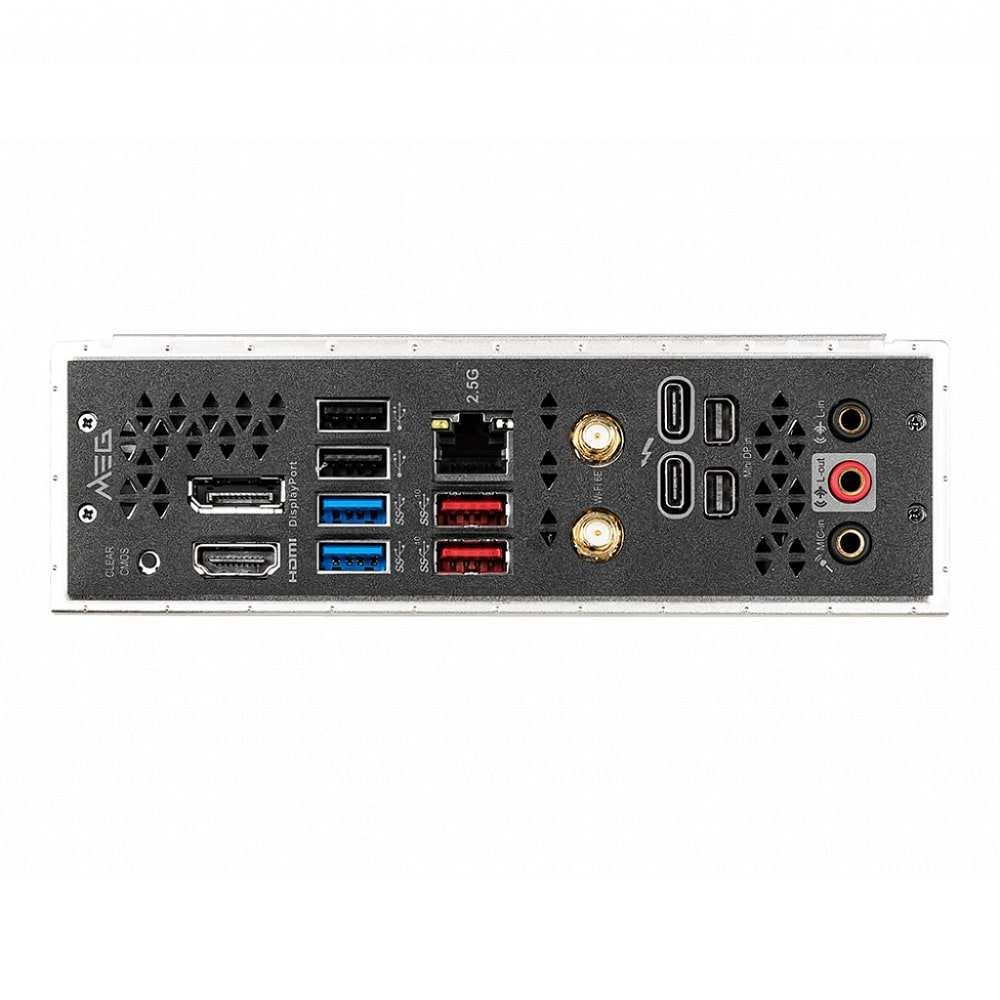

Back Panel Ports_ DisplayPort
USB 2.0
2.5G LAN
Wi-Fi /Bluetooth
Thunderbolt 4 40Gbps (Type-C)
HD Audio Connectors
Clear CMOS Button
HDMI
USB 3.2 Gen1 5Gbps (Type-A)
USB 3.2 Gen2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
Mounting_ 4 mounting holes
DIRECTX_ 12
OS_ Support for Windows 10 64-bit
Dimensions_ 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
Specification: MSI MEG Z590I Unify Mini-ITX Gaming Motherboard
Brand_
MSI
Product Type_
Motherboards
CPU PLATFORM_
INTEL
CPU SOCKET_
LGA1200
FORM FACTOR_
MINI-ITX
MEMORY TYPE_
DDR4
CHIPSET_
Intel Z590
MAXIMUM MEMORY_
64 GB
IDEAL FOR GAMING_
YES
WARRANTY_
3 Years Warranty
