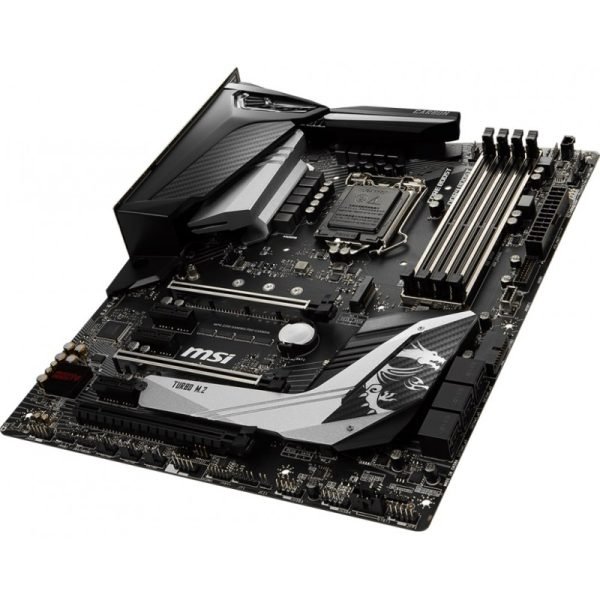

MSI MPG Z390 Gaming Pro Carbon AC

Model
Brand MSI
Model MPG Z390 GAMING PRO CARBON AC
Supported CPU
CPU Socket Type LGA 1151 (300 Series)
CPU Type Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
Chipsets
Chipset Intel Z390
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:
1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096×2304@60Hz
* No Display support when using the Processor model with suffix “F”
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
PCI Express x1 3 x PCIe 3.0 x1 slots
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s ports*
* M.2 slots and SATA ports share the bandwidth.
M.2 2 x M.2 slot (Key M)*
Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices

* M.2 slots and SATA ports share the bandwidth.
Intel Optane Ready Yes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220P-VB2 Codec
Audio Channels 7.1-Channel High Definition Audio
Supports S/PDIF output
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel Wireless-AC 9560
Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4 GHz / 5 GHz (160 MHz) up to 1.73 Gbps
Bluetooth Supports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
HDMI 1 x HDMI
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.1 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-A)
USB 1.1/2.0 2 x USB 2.0 (High-speed USB) ports (Type-A)
USB Type-C 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port (Type-C)
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen2 Type-C port
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Thunderbolt Add-on Card Connector
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
1 x 3-pin CORSAIR LED connector
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Features
Features Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket

Supports DDR4 Memory, up to 4400(OC) MHz

MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip

Lightning Fast Game experience: 2 x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Turbo USB 3.1 GEN2

Recommended reading:Asus Prime X570-P ATX Gaming Motherboard

Set Core Power Free: Core Boost, 8+4-pin CPU power connector, Game Boost, DDR4 Boost with Steel Armor

AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience

Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Packaging
Package Contents Only Motherboard and IO Shield and Sata cable
