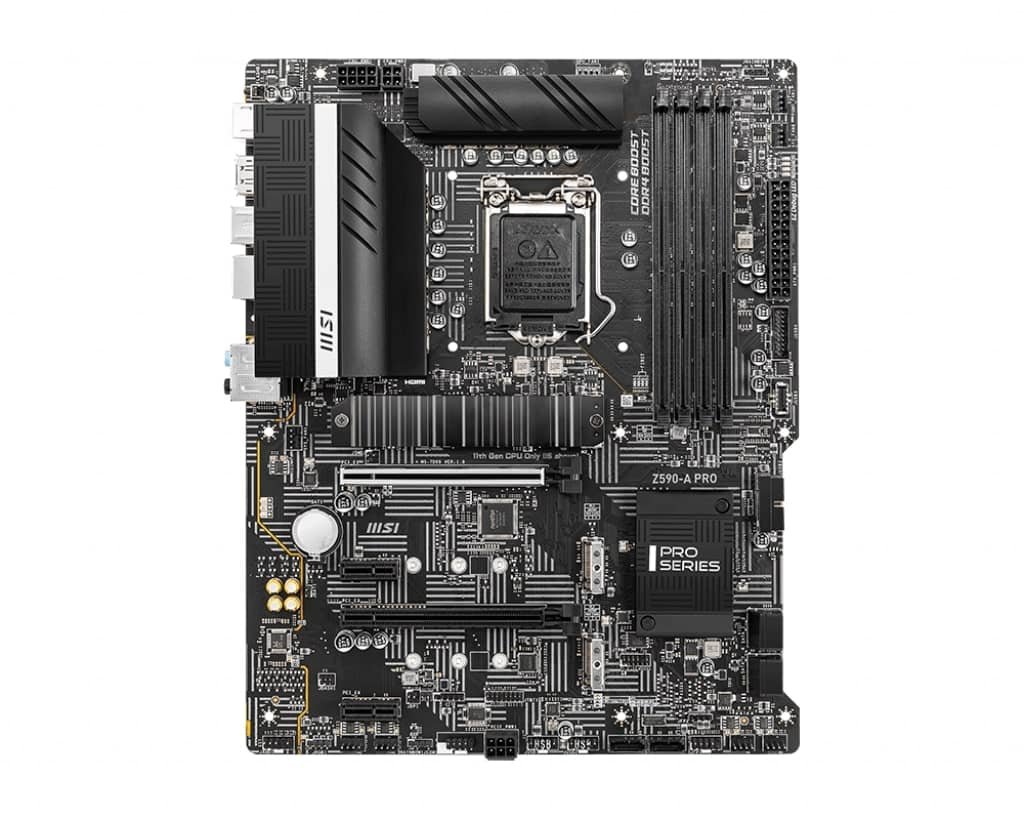

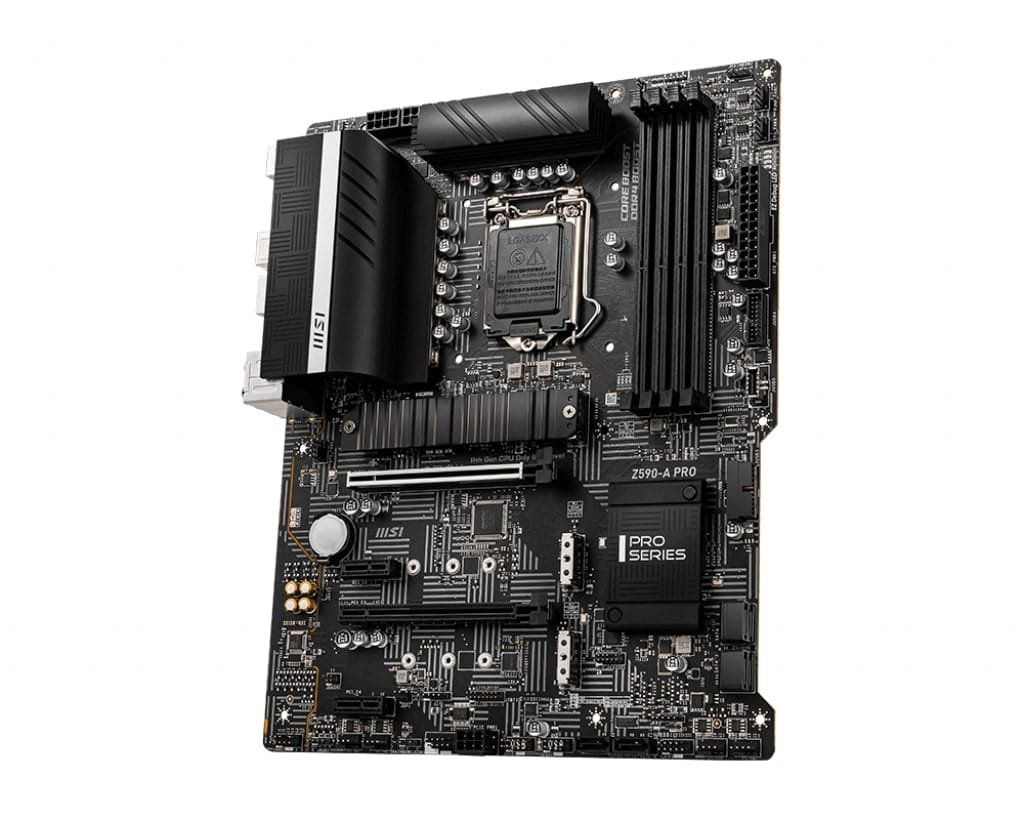

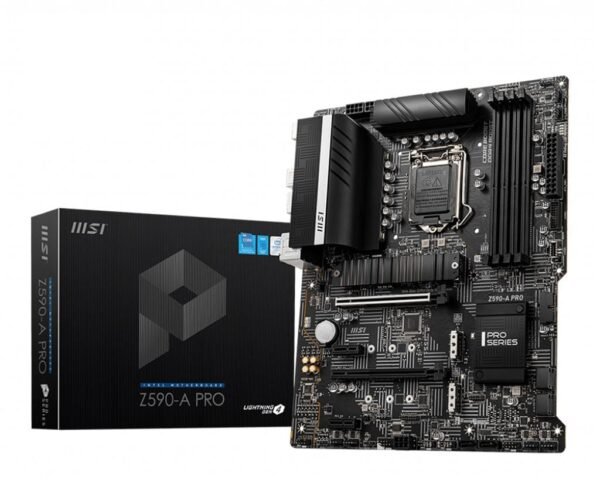

MSI Z590-A Pro ATX Gaming Motherboard
ATX Form Factor
LGA 1200 CPU Socket
Intel Z590 Chipset
DDR4 Up to 128 GB Memory
Windows 10 64-bit Supports
Max CPU Support – i9
Socket – LGA 1200
Form Factor – ATX
DIMM Slots – 4
Operating System – Support for Windows 10 64-bit
TECHNICAL SPECIFICATIONS
CPU_ i9
Socket_ 1200
Processor_ Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA1200
Chipset_ Intel Z590 Chipset
Form Factor_ ATX
Memory_ 4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
DIMM Slots_ 4
LAN_ 1x Intel I225-V 2.5Gbps LAN
Expansion Slots_ 2x PCIe x16 slots
Support x16/ x4
PCI_E1 (from CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 (from Z590 chipset)
Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (from Z590 chipset)
LED Features_ 1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED
Onboard Graphics_ 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Storage_ 6x SATA 6Gb/s ports (from Z590 chipset)
3x M.2 slots (Key M)
M2_1 slot (from CPU) 1
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0×4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21, M2_32 slots (from Z590 chipset)
Support up to PCIe 3.0×4
Support up to SATA 6Gb/s
Support 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Support Intel Smart Response Technology for Intel Core processors
RAID_ Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB_ Intel Z590 Chipset
Intel Z590 Chipset
1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
USB 2.0 Hubs GL850G
4x USB 2.0 Type-A ports on the back panel
4x USB 2.0 ports are available through the internal USB 2.0 connectors
Audio_ Realtek ALC897 Codec
7.1-Channel High Definition Audio
Internal Connectors_ 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)
Back Panel Ports_ Keyboard / Mouse
DisplayPort
USB 2.0
LAN port
Audio connector
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2×2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
Mounting_ 9 mounting holes
DIRECTX_ 12
Crossfire_ y
OS_ Support for Windows 10 64-bit
Dimensions_ 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Specification: MSI Z590-A Pro ATX Gaming Motherboard
Brand_
MSI
Product Type_
Motherboards
CPU PLATFORM_
INTEL
CPU SOCKET_
LGA1200
FORM FACTOR_
ATX
MEMORY TYPE_
DDR4
CHIPSET_
Intel Z590
MAXIMUM MEMORY_
128 GB
IDEAL FOR GAMING_
YES
WARRANTY_
3 Years Warranty
