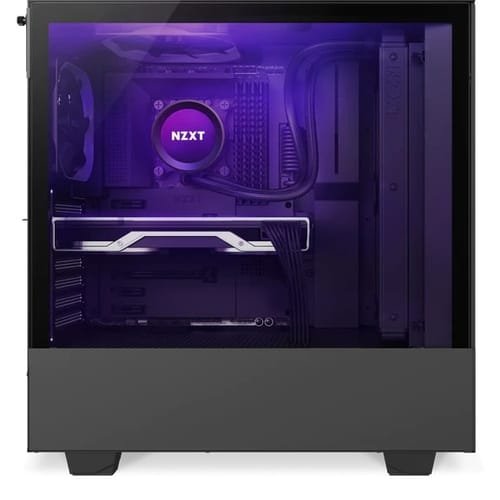

NZXT H510 Elite Mid Tower Gaming Cabinet with RGB LED Strip – CA-H510E-B1 | 2 x 140mm RGB Fans Pre-Installed | Tempered Glass Side Panel – Matte Black
Mid Tower Case Type
Mini-ITX/Micro-ATX/ATX Motherboard Support
Tempered Glass Side Panel
Up to 368mm GPU Clearance Length
Up to 280mm Radiator Support
Case Type – Mid Tower
Motherboard Compatibility – ATX, Micro-ATX, Mini-ITX
Case Material – SGCC Steel, Tempered Glass
CPU Cooler Clearance – Up to 165mm
GPU Clearance – Up to 368mm
OVERVIEW
NZXT H510 Elite Mid Tower Gaming Cabinet with RGB LED Strip is the perfect case for your high-end gaming system. It has a smooth, minimal design and plenty of space for all your high-resource elements. It includes three 140mm fans and a 120mm fan. Also, it has a power supply shroud that helps hide the wires and gives your system a clean look. This PC cabinet has a USB 3.2 Gen 2 Type-A port, a USB 3.2 Gen 1 Type-C port, and a headset audio jack on the front of the case for easy access.
TECHNICAL SPECIFICATIONS
General–
Model– CA-H510E-B1
Color– Matte Black
Motherboard Support– Mini-ITX, Micro-ATX, ATX
Case Type– Compact Mid-Tower
Case Material– SGCC Steel, Tempered Glass
Compatibility & Clearance–
Max CPU Cooler Clearance– 165 mm
Max GPU Clearance– 338 – 368 mm
Front Fan & Radiator Clearance– 60 mm
Vertical GPU Clearance– 50.8 mm

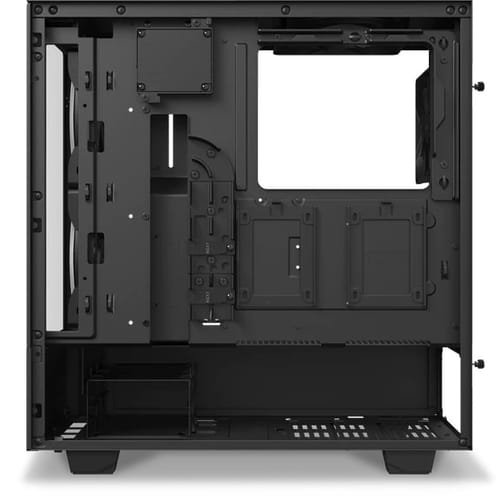

Cable Management– 19 mm – 23 mm
Front I/O Ports–
USB 3.2 Gen 2 Type-A– 1
USB 3.2 Gen 1 Type-C– 1
Headset Audio Jack– 1
Smart Device–
Fan Channels– 3 (10W max per channel)
NZXT RGB Connector– 2 (Support up to 40 LEDs)
Expansion Slots–
Standard– 7
Vertical– 2
Drive Bays–
2.5 inch– 2 + 1
3.5 inch– 2 + 1
Fan Support–

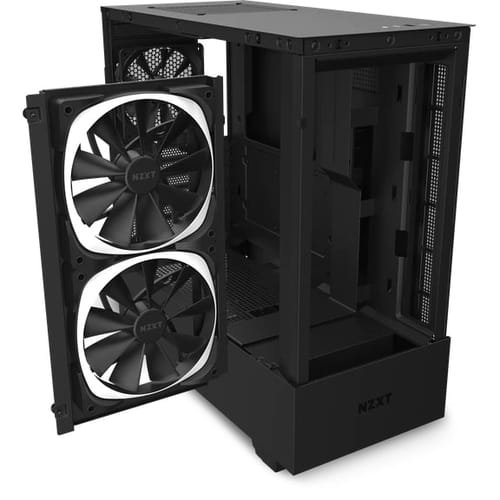

Front– 2 x 120mm / 2 x 140mm
Top– 1 x 120mm / 1 x 140mm
Rear– 1 x 120 mm
Filters– All air intakes
Included Fans–
Front– 2 x Aer RGB 2 140mm
Top– 1 x Aer F 140mm (Case Version)
Rear– Aer F 120mm (Case Version)
Pre-Installed Fan Specs (Front)–
Model– Aer RGB 2 140mm x 2
Speed– 500 – 1,500 ± 300RPM
Airflow– 30.39 – 91.19 CFM
Static Pressure– 0.17 – 1.52 mm-H₂O
Noise– 22 – 33 dBA
Fan Connector– 4-pin PWM
Pre-Installed Fan Specs (Top)–
Model– Aer P 140mm (Case Version)
Speed– 1,000 ± 200RPM
Airflow– 68.95 CFM
Noise– 28 dBA
Fan Connector– 3-pin
Pre-Installed Fan Specs (Rear)–
Model– Aer P 120mm (Case Version)
Speed– 1,200 ± 200RPM
Airflow– 50.42 CFM
Noise– 28 dBA
Fan Connector– 3-pin
Radiator Support–
Front– 280 mm
Top– None
Rear– 120 mm
Dimensions & Weight–
Height– 460 mm / 18.11 inches
Width– 210 mm / 8.27 inches
Depth– 428 mm / 16.85 inches
Weight– 7.5 kg / 16.53 lb
Specification: NZXT H510 Elite Mid Tower Gaming Cabinet with RGB LED Strip – CA-H510E-B1 | 2 x 140mm RGB Fans Pre-Installed | Tempered Glass Side Panel – Matte Black
WARRANTY–
2 Years Warranty
EAN, GTIN, UPC–
0815671015136
Product Type–
PC Cabinets
Brand–
NZXT
COLOR–
MATTE BLACK
FANS–
3
FORM FACTOR–
MID TOWER
LIGHTING–
NONE
MATERIAL–
SGCC+STEEL
MOTHERBOARD COMPATIBILITY–
ATX
RADIATOR COMPATIBILITY–
YES
SIDE PANEL–
TEMPERED GLASS
IDEAL FOR GAMING–
YES
DISCOUNT–
20-30%
