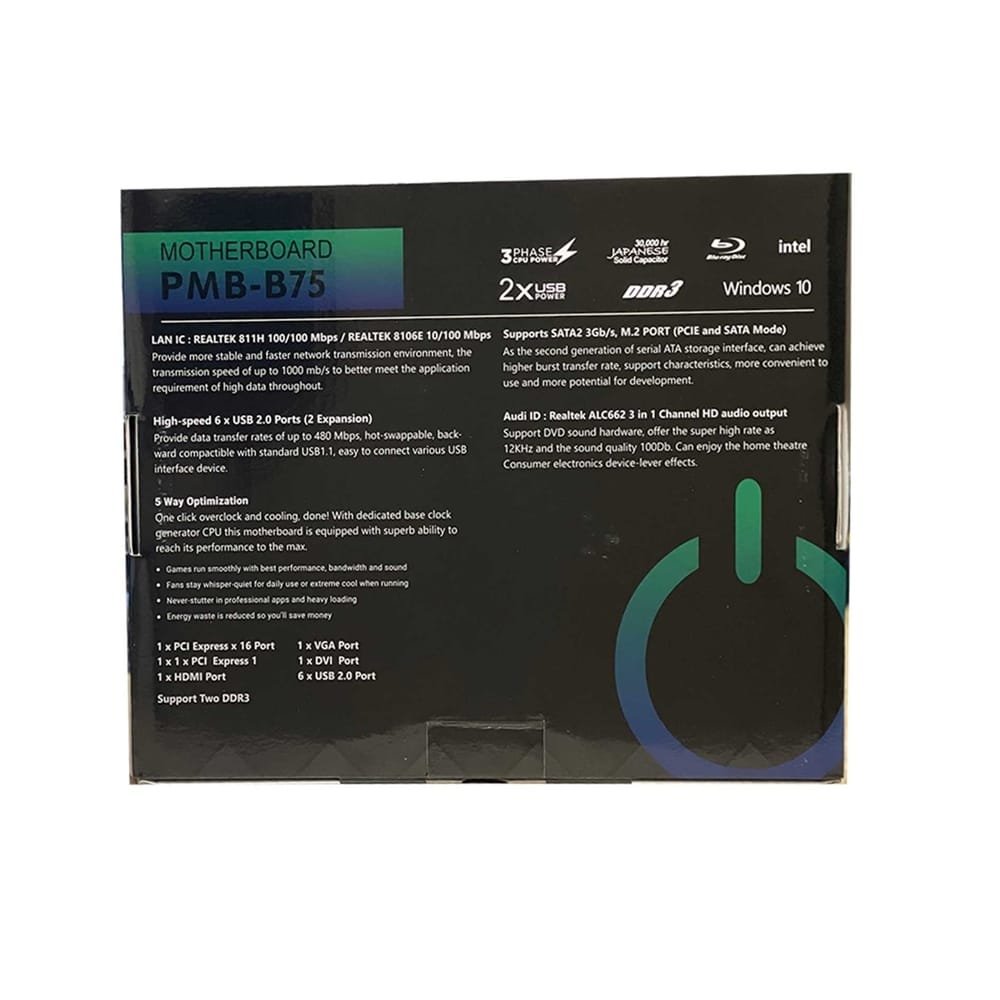

Power X PMB-B75 M.2 H61-DDR3 m-ATX Motherboard | LGA1155 Socket Support
LGA 1155 Socket
Intel H61/B75 Chipset
Maximum capacity support 16 GB
DDR3 RAM memory technology
Micro-ATX Motherboard Support
Motherboard Chipset – Intel H61/B75
CPU socket – LGA1155 Socket
Form Factor – Micro-ATX
I/O – HDMI Port, DVI Port, USB 3.0
Maximum Memory Support – 16 GB
OVERVIEW
The PowerX PMB-B75 H61-DDR3 m-ATX Motherboard has an LGA1155 socket, which supports the Intel Core i3, i5, and i7 processors. It is able to support up to 16GB of DDR3 1600MHz memory. The socket also supports the Intel H61/B75 chipset. It has a dual-channel DDR3 1066MHz/1333/1600 MHz Memory BIOS EFI.
With a 6-channel HD Audio codec Onboard provides a front audio interface, it provides a front stereo mic interface. The motherboard also has M.2 Slot and NVMe Slot, along with a PS/2, HDMI, DVI, and VGA Ports and also 6 USB Ports in total.
TECHNICAL SPECIFICATION
Mode Power-X B75 HN-61 DDR3
Chipset Intel H61/B75
CPU Support LGA 1155 Socket 13/15/17 series CPU
Memory 2 x 240-pin DDRIII slots
Memory up to 16GB
Support dual-channel DDRIII 1066/1333/1600MHz memory
I/O Interface 1 x PS/2 port – 1 x HDMI port
1 x VGA port
1 x DVI port
4 x USB2.0,compartible with USB 1.1
2 x USB3 .0 port (When choosing H61 chipset, USB3.0 will be converted to USB2.0)
1 x RJ45 port
1 x Audio port(Line In/Line Out/MIC In)
Onboard Interface 1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector
2 x USB connectors, can support 4*USB 2.0
1 x USB connectors, can support 2*USB 3.0
1 x F_AUDIO connector
1 x F_PANEL connector
1 x SPEAKER connector
2 x FAN connectors
3 x Serial ATA connection ports
1 x COM connector
BIOS AMI BIOS
Expansions Slots 1 x PCI Express x 16 slot
1 x PCI Express x 1 slot
1 x M.2 slot
Integrated Sound With 6-channel HD Audio Codec onboard provides a front audio interface; provides front stereo mic interface
Integrated LAN With 10/100/1000 Mbps LAN onboard (Optional)
Form Factor Micro-ATX
Dimension 17 x 21.5 cm
Weight 450 gm (approx)
Specification: Power X PMB-B75 M.2 H61-DDR3 m-ATX Motherboard | LGA1155 Socket Support
CPU PLATFORM
INTEL
CPU SOCKET
LGA1155
Product Type
Motherboards
Brand
Power X
CHIPSET
Intel B75, Intel H61
MAXIMUM MEMORY
16 GB
FORM FACTOR
MICRO ATX
IDEAL FOR GAMING
NO
WARRANTY
3 Years Warranty
