Antec HCP-1300 Platinum 1300W Power Supply
Weight 3 kg
SMPS Modular Type
FULLY MODULAR
Brand
Antec
SMPS Certification
80+ PLATINUM
SMPS Watt
1300W
Warranty
3 Years
Product Category
SMPS
Antec’s High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS’ PLATINUM & ErP Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many otherpower supplies. HCP Platinum’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins.the HCP-1300 Platinum embodies everything a power supply can accomplish today.
Technial Details
Model
Brand : Antec
Model : HCP-1300 Platinum
Specifications
1300W Continuous Power – Guaranteed 1300W of Continuous Power from Antec
80 PLUS’ PLATINUM certified – Up to 94% efficient, to reduce your electricity bill
Save Energy and Money – Reduce your electricity bill by up to 25%
16-pin Socket
Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes.
28(20+8)-pin MBU socket
World’s first socket for possible future MBU connectors

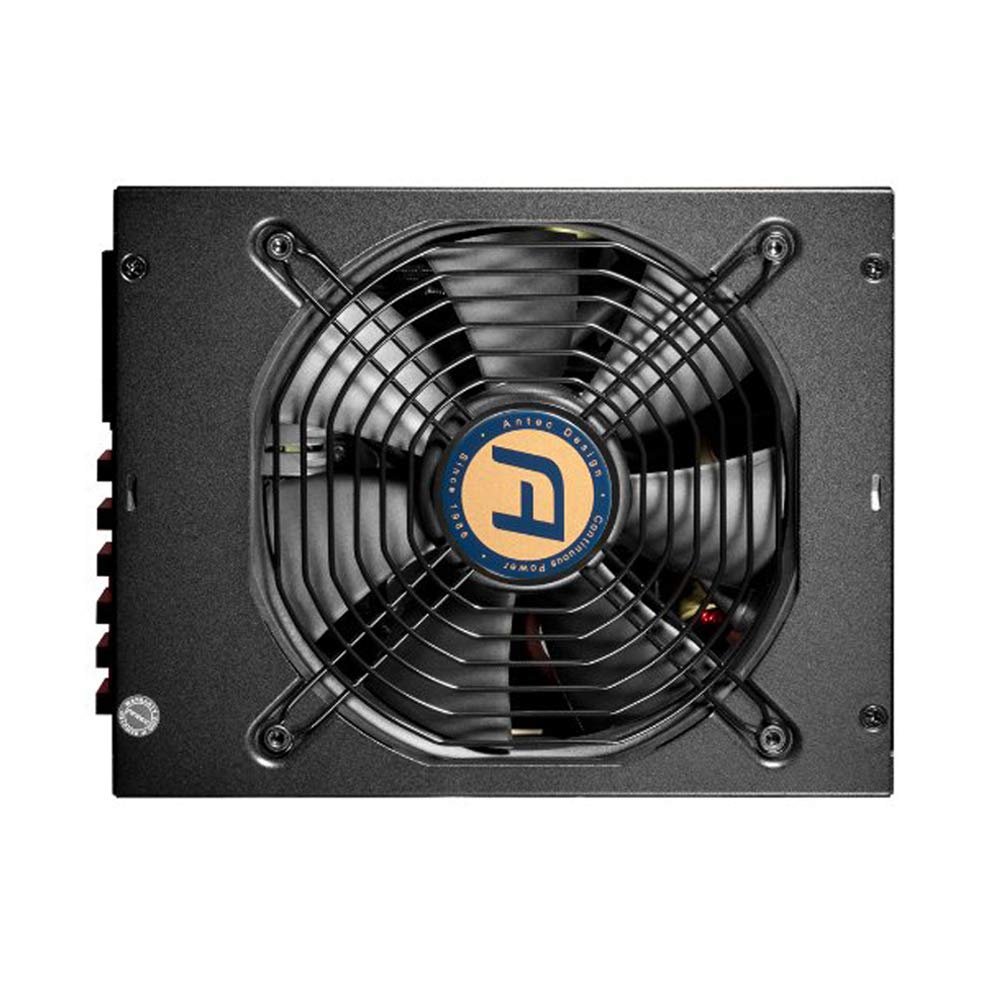

135 mm DBB Silence
Whisper-quiet high-quality double ball bearing fan with long lifetime
Thermal Manager
An advanced low voltage fan control for optimal heat & noise management
High Current Rails
4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
100% +12V
Output for maximum CPU & GPU support
Multi PCI-E
10 PCI-E connectors for multiple GPU support
OC Link’
Allows 2 HCP Platinums to work in tandem to power the most demanding systems
CircuitShield’
Full suite of industrial grade protections:
Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Short Circuit Protection (SCP)
Over Power Protection (OPP)
Over Temperature Protection (OTP)
Surge & Inrush Protection (SIP)
No Load Operation (NLO) & Brown-Out Protection (BOP)
All Japanese Heavy-Duty Caps
All high-performance Japanese capacitors ensure tightest DC stability and regulationPhaseWave’ Design – A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
Stealth Wires
All wires darkened for minimal visibility in chassis.
INPUT
110VAC – 240VAC ~ ‘10%(Active PFC)
50Hz – 60Hz, 15A – 7A
ENVIRONMENT
Operating Temperature : 0’C – 50’C
Safety : UL, cUL, CB, CE, FCC, T’V, BSMI, CCC, C-Tick, GOST-R
Net Weight : 4.7 lbs / 2.2 kg
Size : 86 mm (H) x 150 mm (W) x 190 mm (DƝ.4′ (H) x 5.9′ (W) x 7.5’ (D)
