Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C – TG carves a space uniquely its own as a new force in high-airflow design. Offering a lighter tint than the Meshify C, the Meshify C – TG gives users a clear view into the inside of their case.

An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C – TG has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.

When performance is top priority and compromise is not an option, Meshify has you covered in style.

Key features

Recommended reading:Fractal Design Torrent Compact RGB Black TG Light Tempered Glass High-Airflow ATX Cabinet FD-C-TOR1C-02

Streamlined high-airflow design
The performance and capacity of a larger tower in a remarkably compact mid-tower size
Newly designed angular mesh front panel maximizes air intake
Lightly tinted Tempered Glass side panel offers users a clean and clear view of their components
Distinctive new styling with stealthy black-on-black aesthetic
Flexible storage options with room for up to 5 drives
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust

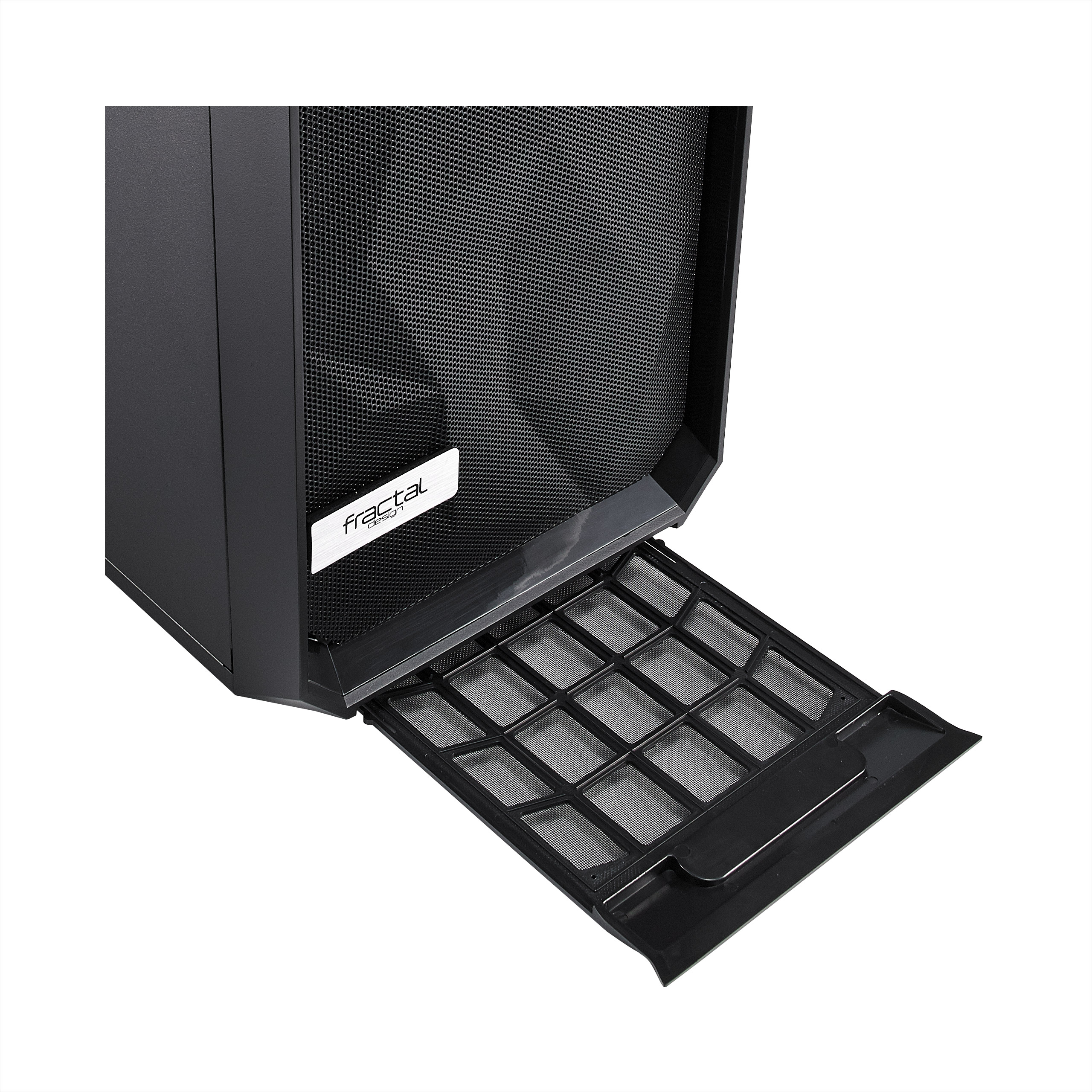

Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommetted pass-throughs for clean cable routing
Specification
3.5″ or 2.5″ Drive capacity : 2
Dedicated 2.5″ drive capacity : 3
Expansion slots : 7
Motherboard compatibility : ATX, mATX, ITX
Power supply type : ATX
Total fan mounts : 7
Front fan : 3x 120 or 2x 140 1x Dynamic X2 GP-12 included
Top fan : 2x 120/140
Rear fan : 1x 120 1x Dynamic X2 GP-12 included
Bottom fan : 1x 120
Side fan : No
Dust filters : Bottom fan PSU Front fans Top fans
Front radiator : 120/240/360mm 140/280mm
Top radiator : 120/240mm (max component height on motherboard 40mm)
Rear radiator : 120mm (max width 125mm)
Power supply depth limit : Maximum 175mm recommended
Graphics card length limit : Max 315mm with front fan mounted
CPU cooler height limit : 172mm
Cable routing : 15-35mm space
Cable routing grommets : Yes
Fixed velcro straps : Yes
Captive thumbscrews : Right side panel SSD brackets
Left side panel : Tempered Glass (3mm Thick)
