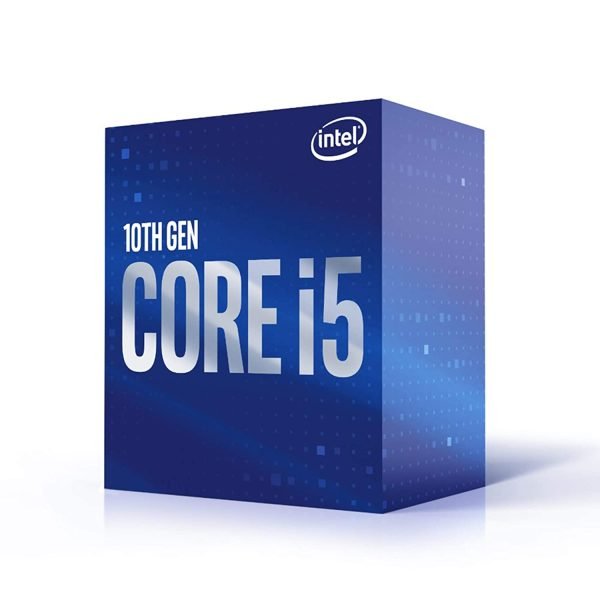

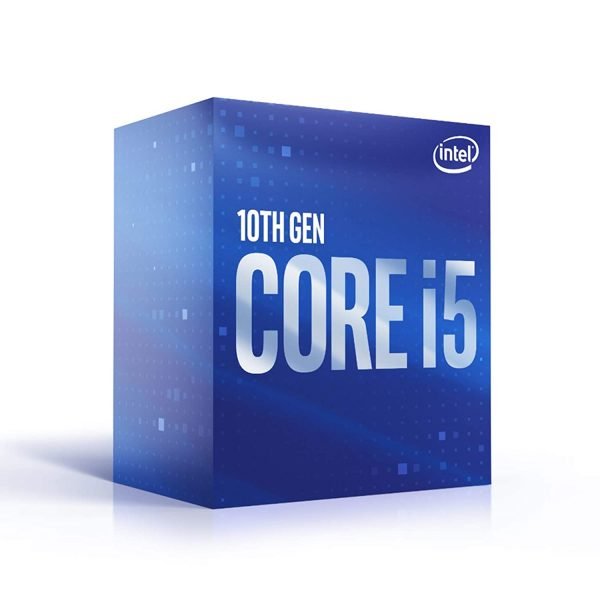

Intel Core i5-10500 10th Generation Desktop Processor BX8070110500 | 6 Cores, 12 Threads, 4.50 GHz Max Turbo Frequency

In stock

Intel Core I5-10500 10th Gen Processor
4.50 GHz Max Turbo Frequency
6 Cores 12 Threads
Intel UHD Graphics 630
Maximum Memory Size 128 GB

Compare
SKU: IT-08122022-2993 Category:

Processor Generation Core i5 10th Generation

Processor Model i5-10500

Cores & Threads 6 Cores & 12 Threads

CPU Clock Speed 3.10GHz Base & 4.5GHz Turbo

CPU Socket FCLGA1200

Cache Memory 12 MB Intel Smart Cache

OVERVIEW
Introducing to you the Intel i5-10500 10th Generation desktop processor which gives you the ultimate pc performance. The i5-10500 gives you a total of 6 Performance Cores and 12 Threads which makes it suitable for multitasking and completing the task without any interruption. The Intel Turbo Boost Technology 2.0 gives the desktop processor a green signal in performance and power during heavy usage without any hassle.

The Intel Core i5-10500 desktop processor also has the Intel Hyper-Threading technology which enables the performance of each core to help them to work on two tasks at the same time and increase the capacity of multi-tasking.

It has a base frequency of 3.10 GHz included with a 12MB Intel Smart Cache. This Desktop Processor also comes with a 4.50GHz Turbo Max Frequency which provides more control to the desktop processor. The Processor supports up to 128GB up to DDR4 2666MT/s memory speed with 2 memory channels. The Intel Core i5-10500 desktop processor is arranged with an FCLGA1200 CPU socket.

TECHNICAL SPECIFICATIONS

GENERAL_
Vertical Segment_ Desktop
Product Collection_ 10th Generation Intel Core i5 Processors
Processor Number_ i5-10500
Lithography_ 14 nm
Use Conditions_ PC/Client/Tablet
CPU SPECIFICATIONS_
No. of Cores_ 6
No. of Threads_ 12
Processor Base Frequency_ 3.10 GHz
Max Turbo Frequency_ 4.50 GHz
Cache_ 12 MB Intel Smart Cache
Bus Speed_ 8 GT/s
TDP_ 65 W
MEMORY SPECIFICATIONS_
Max Memory Size (Dependent On Memory Type)_ 128 GB
Memory Types_ DDR4-2666
Max No. of Memory Channels_ 2
Max Memory Bandwidth_ 41.6 GB/s
SUPPLEMENTAL INFORMATION_
ECC Memory Supported_ No
PROCESSOR GRAPHICS_
Processor Graphics_ Intel UHD Graphics 630
Graphics Base Frequency_ 350 MHz
Graphics Max Dynamic Frequency_ 1.15 GHz
Graphics Video Max Memory_ 64 GB
4K Support_ Yes, at 60Hz
Max Resolution (HDMI)_ 4096 x 2160@30Hz
Max Resolution (DP)_ 4096 x 2304@60Hz
Max Resolution (eDP Integrated Flat Panel)_ 4096 x 2304@60Hz
DirectX Support_ 12
OpenGL Support_ 4.5
Intel Quick Sync Video_ Yes
Intel InTru 3D Technology_ Yes
Intel Clear Video HD Technology_ Yes
Intel Clear Video Technology_ Yes
No. of Displays Supported_ 3
Device ID_ 0x9BC8
EXPANSION OPTIONS_
Scalability_ 1S Only
PCI Express Revision_ 3
PCI Express Configurations_ Up to 116, 28, 18+24
Max No. of PCI Express Lanes_ 16
PACKAGE SPECIFICATIONS_
Sockets Supported_ FCLGA1200
Max CPU Configuration_ 1
Thermal Solution Specification_ PCG 2015C
TJunction_ 100C
ADVANCED TECHNOLOGIES_
Intel Thermal Velocity Boost_ No
Intel Optane Memory Supported_ Yes
Intel Turbo Boost Max Technology 3.0_ No
Intel Turbo Boost Technology_ 2
Intel vPro Platform Eligibility_ Yes
Intel Hyper-Threading Technology_ Yes
Intel Virtualization Technology (VT-x)_ Yes
Intel Virtualization Technology for Directed I/O (VT-d)_ Yes
Intel VT-x with Extended Page Tables (EPT)_ Yes
Intel Transactional Synchronization Extensions_ No
Intel 64_ Yes
Instruction Set_ 64-bit
Instruction Set Extensions_ Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States_ Yes
Enhanced Intel SpeedStep Technology_ Yes
Thermal Monitoring Technologies_ Yes
Intel Identity Protection Technology_ Yes
Intel Stable Image Platform Program (SIPP)_ Yes
Intel AES New Instructions_ Yes
Secure Key_ Yes
Intel Software Guard Extensions (Intel SGX)_ Yes with Intel ME
Intel OS Guard_ Yes
Intel Trusted Execution Technology_ Yes
Execute Disable Bit_ Yes
Intel Boot Guard_ Yes
DIMENSION & WEIGHT_
Package Size_ 11.94 x 9.91 x 7.11 cm
Weight_ 136 gm (approx)
Specification: Intel Core i5-10500 10th Generation Desktop Processor BX8070110500 | 6 Cores, 12 Threads, 4.50 GHz Max Turbo Frequency
EAN, GTIN, UPC_
0735858445986

CPU PLATFORM_
INTEL

Product Type_
Processor

CPU SOCKET_
LGA1200

Brand_
Intel

PROCESSOR SERIES_
Core i5 (10th Gen)

PROCESSOR GENERATION_
10TH

PROCESSOR CORES_
6-Core

THREADS_
12

SPEED_
3.1 GHz

TURBO SPEED_
4.5 GHz

CACHE_
12 MB

INTEGRATED GRAPHICS_
YES

PERFORMANCE_
GAMING

IDEAL FOR GAMING_
YES

WARRANTY_
3 Years Warranty
