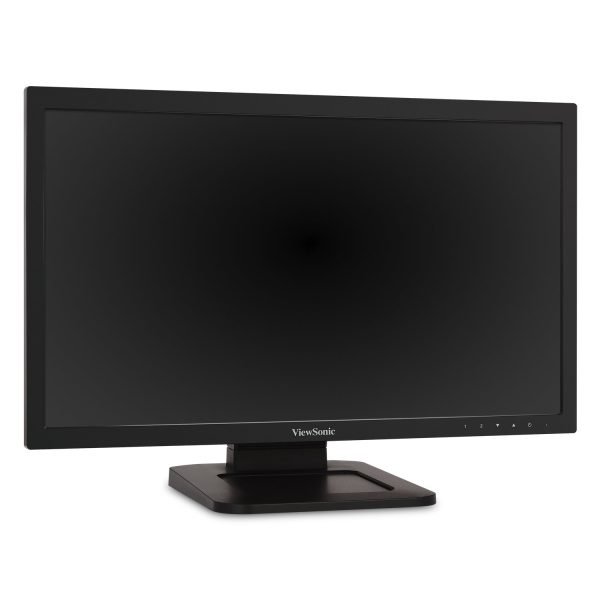

ViewSonic TD2210 22 inch Touch Screen LED-Lit Monitor
Brand
ViewSonic
COLOR
BLACK
MONITOR TYPE
TOUCH
REFRESH RATE
60Hz
RESOLUTION
19201080
DISPLAY TYPE
FHD
RESPONSE TIME
5 ms
SCREEN SIZE (IN INCHES)
22
SYNC
NONE
WARRANTY
3 Years Warranty
Product Type
Monitors
ViewSonic TD2210 22 inch Touch Screen LED-Lit Monitor
FEATURES :
The TD2210 is a 22Ì¢(21.5Ì¢viewable) Full HD monitor with resistive touch technology. With a robust, pressure-sensing touchscreen that is resistant to screen contamination, the TD2210 is ideal for use in retail, POS, and commercial environments. Resistive touch technology on the TD2210 is also fully functional in gloved environments and compatible with styluses. Featuring stunning Full HD resolution and 20M:1 MEGA Dynamic Contrast Ratio, the TD2210 delivers extremely sharp and crisp images. Flexible connectivity options include VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. Industry-leading warranty protection and ViewSonic product quality makes this durable touch display a great long-term investment for a variety of environments.
TECHNICAL SPECIFICATIONS :
LCD PANEL
Display Size (in.) : 22
Viewable Area (in.) : 21.5
Panel Type : TN Technology
Resolution : 1920 x 1080
Resolution Type : FHD
Static Contrast Ratio : 1,000:1 (typ)
Dynamic Contrast Ratio : 20M:1
Light Source : LED
Brightness : 200 cd/m_ (typ)
Colours : 16.7M
Colour Space Support : 8 bit (6 bit + Hi-FRC)
Aspect Ratio : 16:9
Viewing Angles : 170horizontal, 160vertical
Backlight Life (Hours) : 40000 Hrs (Min)
Curvature : Flat
Refresh Rate (Hz) : 60
Colour Gamut : NTSC 72% size (Typ)
sRGB : 103% size (Typ)
Pixel Size : 0.248 mm (H) x 0.248 mm (V)
Touch Screen : Resistive, 1-point single-touch
Surface Treatment : Anti-Glare, Hard Coating (Ì¢Û¡3H)
Cover Glass Thickness : 1.8mm
COMPATIBILITY
PC Resolution (max) : 19201080
MacResolution (max) : 19201080
PC Operating System : Windows 7/8/8.1/10 certified; macOS tested
MacResolution (min) : 19201080
CONNECTOR
VGA : 1
USB 2.0 Type A : 2
USB 2.0 Type B : 1
3.5mm Audio In : 1
Power In : 3-pin Socket (IEC C14 / CEE22)
AUDIO
Internal Speakers : 2 Watts x2
POWER
Eco Mode (Conserve) : 11.5W
Eco Mode (optimized) : 14W
Consumption (typical) : 17.5W
Consumption (max) : 24.5W
Voltage : AC 100-240V, 50/60 Hz
Stand-by : 0.5W
Power Supply : Internal
ADDITIONAL HARDWARE
Kensington Lock Slot : 1
Cable Organization : Yes
CONTROLS
Physical Controls : 1, 2, Up, Down, Power
On Screen Display : Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
OPERATING CONDITIONS
Temperature : 32F to 104F (0C to 40C)
Humidity (non-condensing) : 20% to 90%
WALL MOUNT
VESA Compatible : 100 x 100 mm
INPUT SIGNAL
Frequency Horizontal : 24 ~ 83KHz
Frequency Vertical : 50 ~ 76Hz
VIDEO INPUT
Digital Sync : TMDS DVI-D
Analog Sync : Separate/Composite/SOG RGB Analog
ERGONOMICS
Tilt (Forward/Back) : -5/ 20
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm) : 570 x 427 x 214
Physical (mm) : 512 x 364 x 240
Physical Without Stand (mm) : 512 x 311 x 64
GENERAL
Regulations : cULus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, BIS
PACKAGE CONTENTS
TD2210 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Maler) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
WEIGHT (METRIC)
Net (kg) : 4.8
Net Without Stand (kg) : 3.9
Gross (kg) : 6.5
WARRANTY
3 Years
